Powermatic Associates Logo

MPAXTM00 Red Lion Industrial Automation Components

MPAXTM00 on Powermatic Associates
Red Lion

Part#:MPAXTM00

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

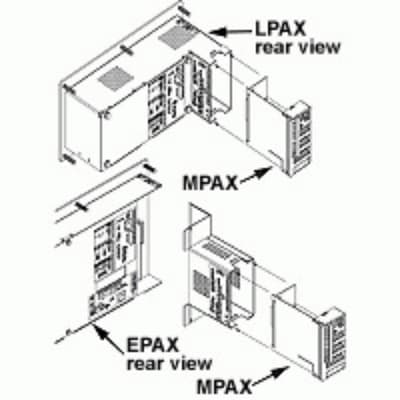

Red Lion MPAXTM00 is a digital timer module within the MPAX series I/O modules, designed to operate with a supply voltage range of 85-250Vac, accommodating various standard voltages including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This part functions primarily as a timer.

Product Details

  • Primary brand
    Red Lion
  • Sub-range name
    MPAX series I/O modules
  • Functions
    Timer module
  • Main function
    Timer (Digital)
  • Order code / Manufacturer SKU
    MPAXTM00
  • Product series / family name
    Process timers
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Compliant with standard(s)
    CE
  • Technical compatibility with
    for LPAX series devices

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
