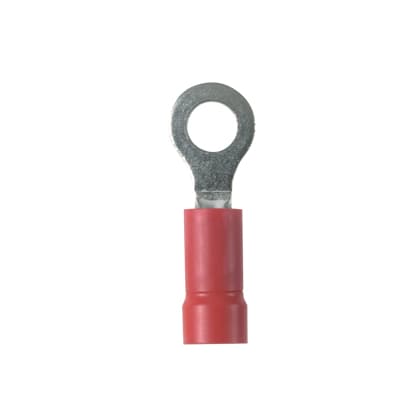

PN18-10R-C Panduit Electronic Components

Product Details

• Part Features
  • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure goo
• For Use With
  CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
• Product Type
  Loose Piece Ring Terminal
• Packaging Type
  Bottle
• Tongue Width (mm)
  7.9
• Tongue Width (In.)
  0.31
• Overall Width (mm)
  7.9
• Tongue Thickness (mm)
  0.8
• Overall Width (In.)
  0.31
• Tongue Thickness (In.)
  0.03
• Overall Length (mm)
  22.1
• Overall Length (In.)
  0.87
• Maximum Wire Insulation Diameter (mm)
  3.68
• Sub Brand
  Pan-Term®
• Maximum Wire Insulation Diameter (In.)
  0.145
• Barrel Type
  Grip Sleeve
• Maximum Operating Temperature (°C)
  105
• Flammability Rating
  UL94-HB
• Maximum Operating Temperature (°F)
  221
• Finish/Coating
  Tin-Plated
Color Code
Red
Maximum Voltage (kV)
0.6
Base Material
Copper
Maximum Voltage (V)
600
Wire Strip Length (mm)
5.6
Standards Met
UL 486A/B, and CSA 22.2 No.65
Wire Strip Length (In.)
7/32
Minimum Metric Conductor Size (mm²)
0.5
Minimum Copper Conductor Size (AWG SOL)
#22
Maximum Metric Conductor Size (mm²)
1.5
Minimum Wire Size (AWG)
#22
Maximum Copper Conductor Size (AWG STR)
#18
Stud Size
#10
Maximum Copper Conductor Size (AWG SOL)
#18
Insulation Material
Nylon
Minimum Copper Conductor Size (AWG STR)
#22
Maximum Wire Size (AWG)
#18
