FTD75-8-D Panduit Electronic Components
Part#:FTD75-8-D
Manufacturer:Panduit
Category:Electronic Components
Product Lifecycle:Active
Mar 14, 2025
Product description

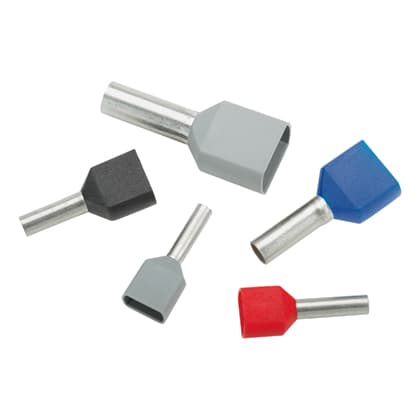

Pan-Term® Twin wire ferrule
Product Details
- Part Features Twin Wire Polypropylene insulation housing conforms to DIN color requirements Meets DIN, UL and CSA standards for twin wire containment Funnel entry for faster insertion and lower installed cost Designed with a seamless barrel to contain loose wire strand
- Sub Brand Pan-Term®
- Base Material Copper
- Color Code White
- For Use With CT-1160, CT-1170, CT-1090, CT-1002, CT-1003, CT-1123, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
- Overall Length (mm) 15
- Product Type Twin wire ferrule
- Standards Met DIN 46228, CSA C22.2 No. 291-14, UL 486F
- Finish/Coating Tin-Plated
- Packaging Type Loose Piece Ferrules
- Overall Length (In.) 0.59
- Minimum Operating Temperature (°C) -54
- Minimum Operating Temperature (°F) -60
- Maximum Wire Insulation Diameter (mm) 2.4
- Maximum Wire Insulation Diameter (In.) 0.09
- Inside Diameter (In.) 0.06
- Maximum Operating Temperature (°F) 221
- Maximum Operating Temperature (°C) 105
- Inside Diameter (mm) 1.5
- Pin Length (mm) 8
- Pin Length (In.) 0.31
- Flammability Rating UL94-HB
- Wire Strip Length (mm) 11.2
- Minimum Metric Conductor Size (mm²) 0.5
- Maximum Metric Conductor Size (mm²) 0.5
- Cover Material Polypropylene
- Copper Conductor Size (AWG) 22 - 20
- Note UL with 20 AWG wire only
- Wire Strip Length (In.) 7/16
- Ferrule Type Twin Wire
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
