221603 Lapp Industrial Automation Components

Name: 221603
Brand: Lapp

Part#:221603

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

37 in stock

Apr 20, 2025

Product description

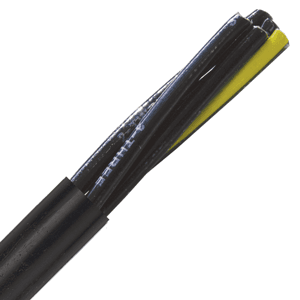

221603 Lapp - ÖLFLEX TRAY II 3G1.5 16/3C

Product Details

Voltage
600 volts
Operating Temperature
-25 degrees celsius, 90 degrees celsius
Jacket Material
Thermoplastic Polymer
Jacket Color
Black
Stranding
Class 5 Fine Wire
Insulation Material
Nylon, PVC
Conductor Material
Finely Stranded Bare Copper
Gauge
16 american wire gauge
Bend Radius
4 X Cable Diameter
UL STYLE / STANDARD
UL 13 UL 1063 UL 1277 UL 1690 UL 2250
MANUFACTURER PART NUMBER
221603
APPLICATION
Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used
WEIGHT LBS/MFT
68
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved
TRAY RATINGS
UL ITC-ER UL PLTC-ER UL TC-ER
JACKET MATERIAL
Thermoplastic Polymer
STATIC TEMPERATURE RATING
-40°F to +221°F-40°C to +105°C
ATTRIBUTES
UL Oil Res I/IISunlight resistant Direct burialNFPA 79
CONDUCTOR MATERIAL
Bare copper
DYNAMIC TEMPERATURE RATING
-13°F to +221°F -25°C to +105°C

TEMPERATURE RANGE

-13°F to +194°F -25°C to +90°C

INSULATION

PVC/Nylon

VOLTAGE

600V

JACKET COLOR

Black

NOMINAL OD (MM)

8.3

NOMINAL OD (IN)

0.325

CONDUCTOR STRANDING

Stranded

CONDUCTOR COLOR

Black with white printing plus green/yellow ground

SHIELDING

Unshielded

NUMBER OF CONDUCTORS

AWG/GAUGE

SERIES

ÖLFLEX® TRAY II / TRAY II CY

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Tray Cable, ÖLFLEX TRAY II, 16 AWG/3C, 600V, UL TC-ER, UL MTW, c(UL) CIC/TC FT4

221603 Related Documents

Datasheet-1638661651293.pdf
