0015012 Lapp Industrial Automation Components

Name: 0015012
Brand: Lapp

Part#:0015012

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

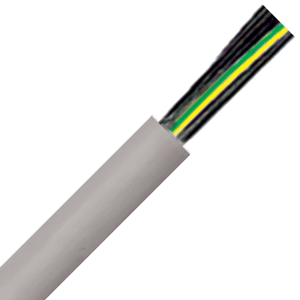

0015012 Lapp - ÖLFLEX 150 12G0,5

Product Details

Stranding
Class 5 Fine Wire
Voltage
600 volts
Operating Temperature
-40 degrees celsius, 90 degrees celsius
Jacket Material
PVC
Jacket Color
Gray
Insulation Material
PVC
Gauge
20 american wire gauge
Conductor Material
Finely Stranded Bare Copper
Bend Radius
4 X Cable Diameter
NOMINAL OD (IN)
0.437
MANUFACTURER PART NUMBER
0015012
SHIELDING
Unshielded
TEMPERATURE
-40°F to +194deg;F-40°C to +90°C
VOLTAGE
600V
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved
INSULATION
PVC
NOMINAL OD (MM)
11.1
CONDUCTOR STRANDING
Stranded
CONDUCTOR MATERIAL
Bare copper
AWG/GAUGE
20

JACKET COLOR

Gray

JACKET MATERIAL

PVC

SERIES

ÖLFLEX® 150

NUMBER OF CONDUCTORS

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Cable, Flexible, ÖLFLEX 150, 20 AWG/12C, 600V, UL AWM, CSA AWM FT1, HAR, CE
