0015312 Lapp Industrial Automation Components

0015312 on Powermatic Associates
Lapp

Part#:0015312

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

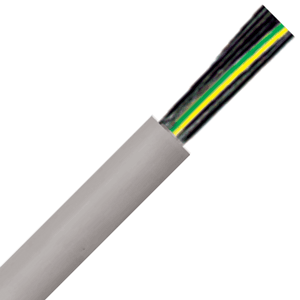

0015312 Lapp - ÖLFLEX 150 12G1,5

Product Details

  • Voltage
    600 volts
  • Gauge
    16 american wire gauge
  • Operating Temperature
    -40 degrees celsius, 90 degrees celsius
  • Insulation Material
    PVC
  • Conductor Material
    Finely Stranded Bare Copper
  • Stranding
    Class 5 Fine Wire
  • Jacket Color
    Gray
  • Jacket Material
    PVC
  • Bend Radius
    4 X Cable Diameter
  • CONDUCTOR MATERIAL
    Bare copper
  • MANUFACTURER PART NUMBER
    0015312
  • CONDUCTOR STRANDING
    Stranded
  • SERIES
    ÖLFLEX® 150
  • VOLTAGE
    600V
  • TEMPERATURE
    -40°F to +194deg;F-40°C to +90°C
  • STANDARDS/APPROVALS
    UL Approved CSA Approved CE Approved
  • JACKET COLOR
    Gray
  • NOMINAL OD (MM)
    15.1
  • INSULATION
    PVC
  • AWG/GAUGE
    16
  • NUMBER OF CONDUCTORS
    12
  • JACKET MATERIAL
    PVC
  • NOMINAL OD (IN)
    0.594
  • SHIELDING
    Unshielded

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


About the product

Cable, Flexible, ÖLFLEX 150, 16 AWG/12C, 600V, UL AWM, CSA AWM FT1, HAR, CE
