YA29LB Hubbell Electronic Components

YA29LB on Powermatic Associates
Hubbell

Part#:YA29LB

Manufacturer:Hubbell

Category:Electronic Components

Product Lifecycle:Active

24 in stock

Mar 14, 2025

Product description

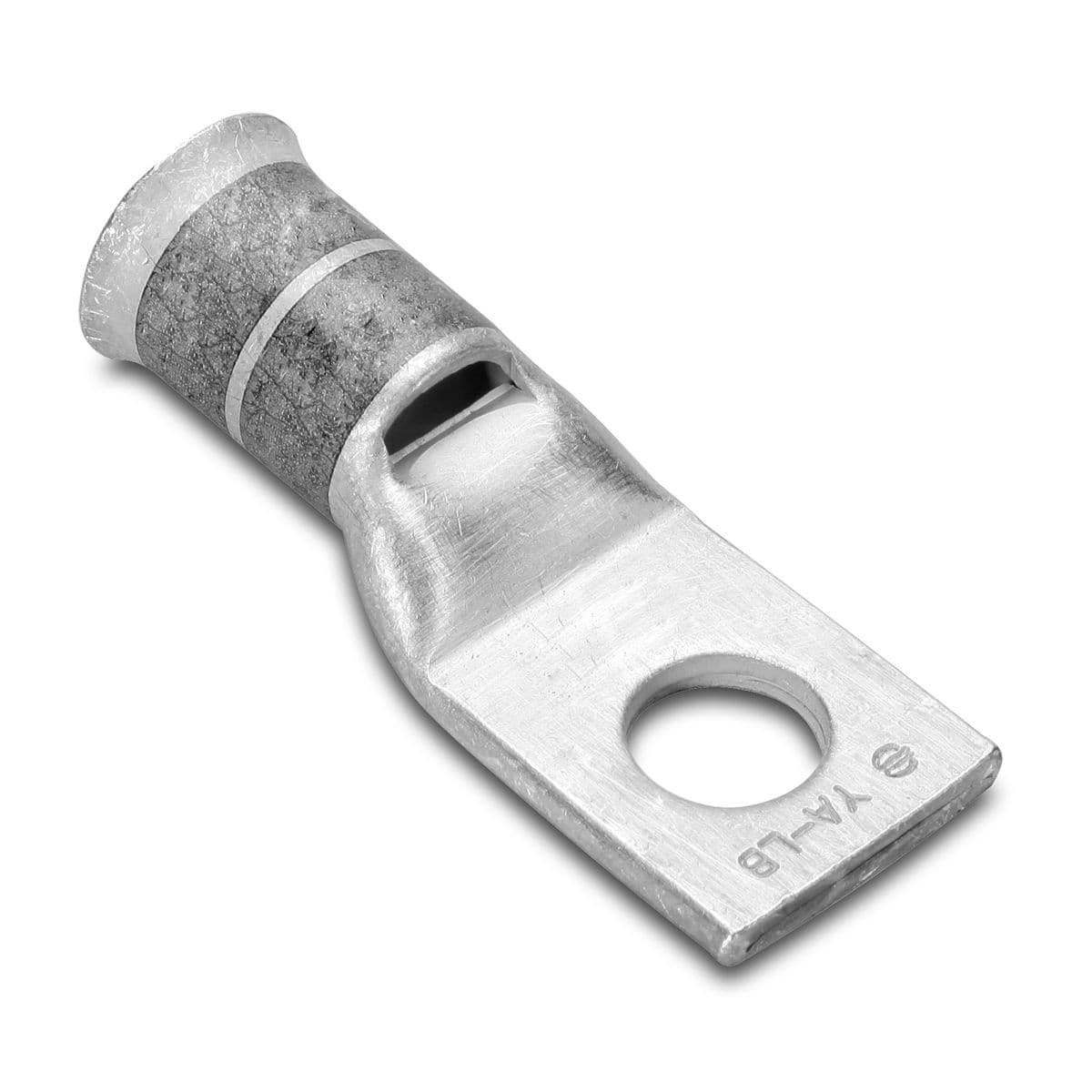

Copper Compression Lug, 1 Hole w/ Inspection Window, 4/0 Flex, 1/2" Stud, Short Barrel, Belled End, Tin Plated. ; Features: UL Listed 90 DEG C, 600 V - 35 KV, Temperature Rating: 90 DEG C, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: U29D

Product Details

  • Industry Standard(s)
    UL 486A-486B
  • Certification - UL Recognized
    No
  • Certification - cULus
    No
  • Standards - RoHS Compliance Status
    CM
  • Minimum Pack Quantity
    1
  • Standards - Industry Standards Met
    UL 486A-486B
  • UL Listed
    Yes
  • Certification - ETL
    No
  • Certification - CSA Approved
    Yes
  • Conductor - Material
    Copper
  • Conductor - Copper Str Size Range
    250 kcmil
  • Conductor - Copper Str Size
    250
  • Conductor - Copper Str Navy Size
    250 (61)
  • Conductor - Copper Solid Size Range
    250
  • Conductor - Copper Solid Size
    250
  • Conductor - Copper Flex K Size
    4/0
  • Conductor - Copper Flex M Size
    4/0
  • Conductor - Copper Flex I Size
    4/0
  • Conductor - Copper Flex H Size
    4/0
  • Conductor - Copper Flex G Size
    4/0
  • Conductor - Copper DLO Size
    4/0 (550/#24)
  • Voltage Rating
    35 kV
  • Dimension - Z inch
    0.55 in
  • Voltage - Maximum
    35000
  • Rating - KVA
    35 kV
  • Physical Attribute - Tongue Angle
    Straight
  • Dimension - Strip Length inch
    1-1/16
  • Dimension - Pad Width inch
    1.11 in
  • Dimension - Outside Diameter inch
    0.75 in
  • Dimension - N inch
    0.53 in
  • Dimension - Length Overall inch
    2.77 in
  • Dimension - L Length Overall mm
    70 mm
  • Dimension - Hole Size mm
    13 mm
  • Dimension - Hole Size inch
    0.53 in
  • Dimension - D inch
    1.08 in
  • Dimension - Bolt Hole Size inch
    0.52 in
  • Dimension - Bolt Size fraction
    1/2
  • UPC 12 Digit
    7818105044200
  • UPC
    781810504420
  • Dimension - B Length inch
    1.04 in
  • Type
    Standard Belled Barrel, Tin Plated
  • Trade Name
    HYLUG™
  • Temperature Rating
    194
  • Sub Brand
    HYLUG
  • Plating Type
    Tin - Electro Plated
  • Plated
    Y
  • Physical Attribute - Tongue Type
    Standard
  • Physical Attribute - Number of Holes
    1
  • Feature - Barrel Style
    Belled
  • EU RoHS Indicator
    Yes
  • Feature - Barrel Type
    Standard
  • Die Index
    16
  • Color Code
    Yellow
  • Connector Type
    Terminal

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
