Name: 1.01.0353.22012
Brand: HMS Networks

1.01.0068.46010

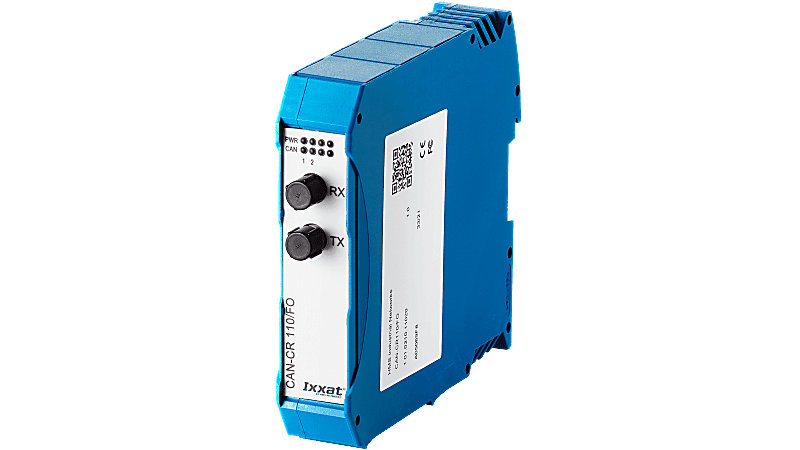

Ixxat by HMS Networks 1.01.0068.46010 is a repeater designed for converting signals from ISO 11898-2 to fiber optic cable and vice versa. It features a stackable converter/repeater functionality with a Texas Instruments SN65HVD251 CAN transceiver. This part supports a maximum of 120 bus nodes and includes a 120Ω CAN bus termination resistor, which is switchable via a DIP switch. The CAN bus interface complies with ISO 11898-2 standards and utilizes a Sub-D9 connector with integrated, switchable CAN termination resistors. For fiber optic connections, it offers 2 x F-SMA or ST terminals suitable for duplex lines with multi-mode glass of 50/125μm or 62.5/125μm. The repeater introduces a delay of 300ns, equivalent to a 60m bus length, not accounting for the fiber optic signal delay time of 5ns/m. It provides galvanic isolation of 1kV and features a design with 1 x T-bus connector, 1 x ST connector for fiber optics, and 1 x 4-poles plug-in screw connector for power. The device operates with a control voltage of 1.5W (typical), can withstand ambient air temperatures for storage from -20 to +70°C, and operates within a humidity range of 10-95% RH non-condensing. It is housed in a plastic (ABS) enclosure suitable for DIN rail mounting, measuring 100mm in height, 22.5mm in width, and 120mm in depth, and offers protection up to IP30. The repeater is designed to support communication speeds up to 1Mbit/s (CAN).

HMS Networks

018280

Verified stock: 0

HMS eWon component

HMS Networks

1.01.0210.20010

Verified stock: 0

Ixxat by HMS Networks 1.01.0210.20010 is a CAN/CAN FD repeater designed to facilitate communication within automation systems. It features a Microchip MCP2562FD CAN/CAN FD transceiver and supports both ISO CAN FD and non-ISO CAN FD protocols. The repeater is capable of arbitration rates up to 1000kBit/s and data rates up to 8000kbit/s, with the ability to configure user-defined bit rates. The device exhibits a typical delay of 175ns, equivalent to a 35m bus length, and offers galvanic isolation of 3kVdc/s or 1500Vac/min between CAN 1/CAN 2 and the power supply. It operates on a supply voltage of 9-36Vdc, with nominal values of 12Vdc and 24Vdc, and includes a 120Ω CAN bus termination resistor. The CAN bus interface complies with ISO 11898-2 standards and includes a CAN choke, with connection facilitated through two screw terminals, available with or without integrated CAN termination. The unit is equipped with 8 LED indicators for power, transmit, and defective segment monitoring, and supports a wide operating temperature range of -20 to +70°C. It is designed for DIN rail mounting within a plastic housing, measuring 105mm in height, 22.5mm in width, and 114mm in depth, and is protected against ingress to IP20 standards.

HMS Networks

AB7646-F

Verified stock: 0

Anybus by HMS Networks AB7646-F is a gateway designed for protocol translation within the X-gateway series. It functions as a PROFIBUS master and a PROFINET-IO device, facilitating communication between these two industrial networks. The gateway is equipped with 10 LED indicators for monitoring fieldbus, sub-network, and device status. It supports an I/O configuration via a USB port using the Anybus Configuration Manager software and requires a supply voltage of 19.2-28.8Vdc, with 24Vdc nominal. The AB7646-F has dimensions of H127mm x W44mm x D114mm and features an aluminium/plastic housing. Connection options include a 1 x RJ45 LAN connector for 100Mbit/s Ethernet and PROFINET I.O. in full duplex, a 1 x 9-pin D-sub female connector for PROFIBUS, a 1 x 9-pin D-sub male connector for PROFIBUS and RS-232 configuration, a 1 x 2-poles 5.08mm plug-in screw connector for power, and a 1 x USB connector. It offers galvanic isolation on both BUS/Ethernet sides, has an IP20 NEMA 1 degree of protection, and is designed for DIN rail mounting. The AB7646-F operates within an ambient air temperature range of -25 to +65 °C, with a current consumption of 400mA (max) and 200mA (typical). It is capable of speeds up to 100Mbit/s for PROFINET and up to 12Mbit/s for PROFIBUS, and should be operated in environments with 5-95% relative humidity, non-condensing.

HMS Networks

1.01.0210.20210

Verified stock: 0

Ixxat by HMS Networks 1.01.0210.20210 is a CAN/CAN FD repeater designed to facilitate communication within automation systems. It features two duo LEDs for transmitting and indicating defective segments, alongside a power LED. The device utilizes a Microchip MCP2562FD CAN/CAN FD transceiver and includes a 120Ω CAN bus termination resistor, with variants available that integrate this resistor directly. The CAN bus interface complies with ISO 11898-2 standards and includes a CAN choke, offering connections via two screw terminals, with options for integrated CAN termination. It supports both ISO CAN FD and non-ISO CAN FD protocols, with arbitration rates up to 1000kBit/s and data rates up to 8000kbit/s, though actual rates may vary based on operating conditions. The repeater has a typical delay of 175ns, equivalent to a 35m bus length, and features 3kVdc/s or 1500Vac/min galvanic isolation between CAN 1/CAN 2 and the power supply. It operates on a 9-36Vdc supply, with nominal 12Vdc/24Vdc, and includes 2 x 4-poles plug-in screw connectors for CAN and 1 x 4-poles plug-in screw connector for power. The device is equipped with 8 x LED indicators for comprehensive status monitoring, is designed for DIN rail mounting in a plastic housing, and measures H105mm x W22.5mm x D114mm. It operates efficiently within an ambient air temperature range for storage of -20 to +70°C and a control voltage up to 1Mbit/s for CAN bit rate and 500kbit/s to 4Mbit/s for CAN FD bit rate, within a humidity range of 10-95% RH, non-condensing.

HMS Networks

1.01.0282.12001

$419.00

Verified stock: 29

Ixxat by HMS Networks 1.01.0282.12001 is a gateway featuring an active USB-to-CAN V2 interface. It operates with a USB 2.0 Hi-Speed PC bus interface and is powered by a 32bit microcontroller. The internal CAN controller supports CAN 2.0 A/B with baud rates ranging from 10kBit/s to 1Mbit/s. It includes a high-speed CAN transceiver (TI SN65HVD251D), a low-speed CAN transceiver (TJA1055T), and a LIN transceiver (TJA1020) that supports LIN protocol versions 1.3 and 2.0 with a maximum LIN baud rate of 20kBaud. The device offers galvanic isolation of 1000Vdc for 1s or 500Vac for 1min and is powered by a 5V, max. 300mA supply via the USB port. Fieldbus connection complies with CiA 303-1 standards. It features a 9-pin D-sub male connector for CAN and a USB 2.0 Hi-speed connector. The gateway operates within a temperature range of -20 to +70°C and offers a degree of protection rated for control voltages from -40 to +85°C. Communication protocols include 10kbit/s to 1Mbit/s for the CAN HS port and 480Mbit/s for the USB interface. The device dimensions are H80mm x W50mm x D22mm, designed for surface mounting and operates in environments with 10-95% relative humidity, non-condensing.

HMS Networks

FLB3203

$264.00

Verified stock: 2

4g Verizon Flexy Extension Card

HMS Networks

FLX3101

$292.00

Verified stock: 4

Ethernet WAN port- expansion card

HMS Networks

1.01.0068.46010

Verified stock: 0

Ixxat by HMS Networks 1.01.0068.46010 is a repeater designed for converting signals from ISO 11898-2 to fiber optic cable and vice versa. It features a stackable converter/repeater functionality with a Texas Instruments SN65HVD251 CAN transceiver. This part supports a maximum of 120 bus nodes and includes a 120Ω CAN bus termination resistor, which is switchable via a DIP switch. The CAN bus interface complies with ISO 11898-2 standards and utilizes a Sub-D9 connector with integrated, switchable CAN termination resistors. For fiber optic connections, it offers 2 x F-SMA or ST terminals suitable for duplex lines with multi-mode glass of 50/125μm or 62.5/125μm. The repeater introduces a delay of 300ns, equivalent to a 60m bus length, not accounting for the fiber optic signal delay time of 5ns/m. It provides galvanic isolation of 1kV and features a design with 1 x T-bus connector, 1 x ST connector for fiber optics, and 1 x 4-poles plug-in screw connector for power. The device operates with a control voltage of 1.5W (typical), can withstand ambient air temperatures for storage from -20 to +70°C, and operates within a humidity range of 10-95% RH non-condensing. It is housed in a plastic (ABS) enclosure suitable for DIN rail mounting, measuring 100mm in height, 22.5mm in width, and 120mm in depth, and offers protection up to IP30. The repeater is designed to support communication speeds up to 1Mbit/s (CAN).

HMS Networks

018280

Verified stock: 0

HMS eWon component

HMS Networks

1.01.0210.20010

Verified stock: 0

Ixxat by HMS Networks 1.01.0210.20010 is a CAN/CAN FD repeater designed to facilitate communication within automation systems. It features a Microchip MCP2562FD CAN/CAN FD transceiver and supports both ISO CAN FD and non-ISO CAN FD protocols. The repeater is capable of arbitration rates up to 1000kBit/s and data rates up to 8000kbit/s, with the ability to configure user-defined bit rates. The device exhibits a typical delay of 175ns, equivalent to a 35m bus length, and offers galvanic isolation of 3kVdc/s or 1500Vac/min between CAN 1/CAN 2 and the power supply. It operates on a supply voltage of 9-36Vdc, with nominal values of 12Vdc and 24Vdc, and includes a 120Ω CAN bus termination resistor. The CAN bus interface complies with ISO 11898-2 standards and includes a CAN choke, with connection facilitated through two screw terminals, available with or without integrated CAN termination. The unit is equipped with 8 LED indicators for power, transmit, and defective segment monitoring, and supports a wide operating temperature range of -20 to +70°C. It is designed for DIN rail mounting within a plastic housing, measuring 105mm in height, 22.5mm in width, and 114mm in depth, and is protected against ingress to IP20 standards.

HMS Networks

AB7646-F

Verified stock: 0

Anybus by HMS Networks AB7646-F is a gateway designed for protocol translation within the X-gateway series. It functions as a PROFIBUS master and a PROFINET-IO device, facilitating communication between these two industrial networks. The gateway is equipped with 10 LED indicators for monitoring fieldbus, sub-network, and device status. It supports an I/O configuration via a USB port using the Anybus Configuration Manager software and requires a supply voltage of 19.2-28.8Vdc, with 24Vdc nominal. The AB7646-F has dimensions of H127mm x W44mm x D114mm and features an aluminium/plastic housing. Connection options include a 1 x RJ45 LAN connector for 100Mbit/s Ethernet and PROFINET I.O. in full duplex, a 1 x 9-pin D-sub female connector for PROFIBUS, a 1 x 9-pin D-sub male connector for PROFIBUS and RS-232 configuration, a 1 x 2-poles 5.08mm plug-in screw connector for power, and a 1 x USB connector. It offers galvanic isolation on both BUS/Ethernet sides, has an IP20 NEMA 1 degree of protection, and is designed for DIN rail mounting. The AB7646-F operates within an ambient air temperature range of -25 to +65 °C, with a current consumption of 400mA (max) and 200mA (typical). It is capable of speeds up to 100Mbit/s for PROFINET and up to 12Mbit/s for PROFIBUS, and should be operated in environments with 5-95% relative humidity, non-condensing.

HMS Networks

1.01.0210.20210

Verified stock: 0

Ixxat by HMS Networks 1.01.0210.20210 is a CAN/CAN FD repeater designed to facilitate communication within automation systems. It features two duo LEDs for transmitting and indicating defective segments, alongside a power LED. The device utilizes a Microchip MCP2562FD CAN/CAN FD transceiver and includes a 120Ω CAN bus termination resistor, with variants available that integrate this resistor directly. The CAN bus interface complies with ISO 11898-2 standards and includes a CAN choke, offering connections via two screw terminals, with options for integrated CAN termination. It supports both ISO CAN FD and non-ISO CAN FD protocols, with arbitration rates up to 1000kBit/s and data rates up to 8000kbit/s, though actual rates may vary based on operating conditions. The repeater has a typical delay of 175ns, equivalent to a 35m bus length, and features 3kVdc/s or 1500Vac/min galvanic isolation between CAN 1/CAN 2 and the power supply. It operates on a 9-36Vdc supply, with nominal 12Vdc/24Vdc, and includes 2 x 4-poles plug-in screw connectors for CAN and 1 x 4-poles plug-in screw connector for power. The device is equipped with 8 x LED indicators for comprehensive status monitoring, is designed for DIN rail mounting in a plastic housing, and measures H105mm x W22.5mm x D114mm. It operates efficiently within an ambient air temperature range for storage of -20 to +70°C and a control voltage up to 1Mbit/s for CAN bit rate and 500kbit/s to 4Mbit/s for CAN FD bit rate, within a humidity range of 10-95% RH, non-condensing.

HMS Networks

1.01.0282.12001

$419.00

Verified stock: 29

Ixxat by HMS Networks 1.01.0282.12001 is a gateway featuring an active USB-to-CAN V2 interface. It operates with a USB 2.0 Hi-Speed PC bus interface and is powered by a 32bit microcontroller. The internal CAN controller supports CAN 2.0 A/B with baud rates ranging from 10kBit/s to 1Mbit/s. It includes a high-speed CAN transceiver (TI SN65HVD251D), a low-speed CAN transceiver (TJA1055T), and a LIN transceiver (TJA1020) that supports LIN protocol versions 1.3 and 2.0 with a maximum LIN baud rate of 20kBaud. The device offers galvanic isolation of 1000Vdc for 1s or 500Vac for 1min and is powered by a 5V, max. 300mA supply via the USB port. Fieldbus connection complies with CiA 303-1 standards. It features a 9-pin D-sub male connector for CAN and a USB 2.0 Hi-speed connector. The gateway operates within a temperature range of -20 to +70°C and offers a degree of protection rated for control voltages from -40 to +85°C. Communication protocols include 10kbit/s to 1Mbit/s for the CAN HS port and 480Mbit/s for the USB interface. The device dimensions are H80mm x W50mm x D22mm, designed for surface mounting and operates in environments with 10-95% relative humidity, non-condensing.

HMS Networks

FLB3203

$264.00

Verified stock: 2

4g Verizon Flexy Extension Card

HMS Networks

FLX3101

$292.00

Verified stock: 4

Ethernet WAN port- expansion card

HMS Networks

1.01.0068.46010

Verified stock: 0

Ixxat by HMS Networks 1.01.0068.46010 is a repeater designed for converting signals from ISO 11898-2 to fiber optic cable and vice versa. It features a stackable converter/repeater functionality with a Texas Instruments SN65HVD251 CAN transceiver. This part supports a maximum of 120 bus nodes and includes a 120Ω CAN bus termination resistor, which is switchable via a DIP switch. The CAN bus interface complies with ISO 11898-2 standards and utilizes a Sub-D9 connector with integrated, switchable CAN termination resistors. For fiber optic connections, it offers 2 x F-SMA or ST terminals suitable for duplex lines with multi-mode glass of 50/125μm or 62.5/125μm. The repeater introduces a delay of 300ns, equivalent to a 60m bus length, not accounting for the fiber optic signal delay time of 5ns/m. It provides galvanic isolation of 1kV and features a design with 1 x T-bus connector, 1 x ST connector for fiber optics, and 1 x 4-poles plug-in screw connector for power. The device operates with a control voltage of 1.5W (typical), can withstand ambient air temperatures for storage from -20 to +70°C, and operates within a humidity range of 10-95% RH non-condensing. It is housed in a plastic (ABS) enclosure suitable for DIN rail mounting, measuring 100mm in height, 22.5mm in width, and 120mm in depth, and offers protection up to IP30. The repeater is designed to support communication speeds up to 1Mbit/s (CAN).

HMS Networks

018280

Verified stock: 0

HMS eWon component

HMS Networks

1.01.0210.20010

Verified stock: 0

Ixxat by HMS Networks 1.01.0210.20010 is a CAN/CAN FD repeater designed to facilitate communication within automation systems. It features a Microchip MCP2562FD CAN/CAN FD transceiver and supports both ISO CAN FD and non-ISO CAN FD protocols. The repeater is capable of arbitration rates up to 1000kBit/s and data rates up to 8000kbit/s, with the ability to configure user-defined bit rates. The device exhibits a typical delay of 175ns, equivalent to a 35m bus length, and offers galvanic isolation of 3kVdc/s or 1500Vac/min between CAN 1/CAN 2 and the power supply. It operates on a supply voltage of 9-36Vdc, with nominal values of 12Vdc and 24Vdc, and includes a 120Ω CAN bus termination resistor. The CAN bus interface complies with ISO 11898-2 standards and includes a CAN choke, with connection facilitated through two screw terminals, available with or without integrated CAN termination. The unit is equipped with 8 LED indicators for power, transmit, and defective segment monitoring, and supports a wide operating temperature range of -20 to +70°C. It is designed for DIN rail mounting within a plastic housing, measuring 105mm in height, 22.5mm in width, and 114mm in depth, and is protected against ingress to IP20 standards.

HMS Networks

AB7646-F

Verified stock: 0

Anybus by HMS Networks AB7646-F is a gateway designed for protocol translation within the X-gateway series. It functions as a PROFIBUS master and a PROFINET-IO device, facilitating communication between these two industrial networks. The gateway is equipped with 10 LED indicators for monitoring fieldbus, sub-network, and device status. It supports an I/O configuration via a USB port using the Anybus Configuration Manager software and requires a supply voltage of 19.2-28.8Vdc, with 24Vdc nominal. The AB7646-F has dimensions of H127mm x W44mm x D114mm and features an aluminium/plastic housing. Connection options include a 1 x RJ45 LAN connector for 100Mbit/s Ethernet and PROFINET I.O. in full duplex, a 1 x 9-pin D-sub female connector for PROFIBUS, a 1 x 9-pin D-sub male connector for PROFIBUS and RS-232 configuration, a 1 x 2-poles 5.08mm plug-in screw connector for power, and a 1 x USB connector. It offers galvanic isolation on both BUS/Ethernet sides, has an IP20 NEMA 1 degree of protection, and is designed for DIN rail mounting. The AB7646-F operates within an ambient air temperature range of -25 to +65 °C, with a current consumption of 400mA (max) and 200mA (typical). It is capable of speeds up to 100Mbit/s for PROFINET and up to 12Mbit/s for PROFIBUS, and should be operated in environments with 5-95% relative humidity, non-condensing.

HMS Networks

1.01.0210.20210

Verified stock: 0

Ixxat by HMS Networks 1.01.0210.20210 is a CAN/CAN FD repeater designed to facilitate communication within automation systems. It features two duo LEDs for transmitting and indicating defective segments, alongside a power LED. The device utilizes a Microchip MCP2562FD CAN/CAN FD transceiver and includes a 120Ω CAN bus termination resistor, with variants available that integrate this resistor directly. The CAN bus interface complies with ISO 11898-2 standards and includes a CAN choke, offering connections via two screw terminals, with options for integrated CAN termination. It supports both ISO CAN FD and non-ISO CAN FD protocols, with arbitration rates up to 1000kBit/s and data rates up to 8000kbit/s, though actual rates may vary based on operating conditions. The repeater has a typical delay of 175ns, equivalent to a 35m bus length, and features 3kVdc/s or 1500Vac/min galvanic isolation between CAN 1/CAN 2 and the power supply. It operates on a 9-36Vdc supply, with nominal 12Vdc/24Vdc, and includes 2 x 4-poles plug-in screw connectors for CAN and 1 x 4-poles plug-in screw connector for power. The device is equipped with 8 x LED indicators for comprehensive status monitoring, is designed for DIN rail mounting in a plastic housing, and measures H105mm x W22.5mm x D114mm. It operates efficiently within an ambient air temperature range for storage of -20 to +70°C and a control voltage up to 1Mbit/s for CAN bit rate and 500kbit/s to 4Mbit/s for CAN FD bit rate, within a humidity range of 10-95% RH, non-condensing.

HMS Networks

1.01.0353.22012 HMS Networks Network Gateways

Part#:1.01.0353.22012

Manufacturer:HMS Networks

Product condition

1.01.0353.22012 Description
