Powermatic Associates Logo

58.33.9.024.0050 Finder Control Relays

58.33.9.024.0050 on Powermatic Associates
Finder

Part#:58.33.9.024.0050

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

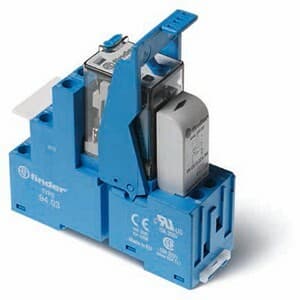

Electromechanical interface relay module pre-assembled with socket base and ejector - with LED indicator - Finder (58 series) - Control coil voltage 24Vdc - 3 poles (3P) - 3C/O / 3PDT (3 Pole Double Throw) contact - Rated current 10A (250Vac; AC-1) / 10A

Product Details

  • Product series / family name
    58 series
  • Mounting mode
    DIN rail Plug-in
  • Rated voltage (AC)
    250Vac
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Primary brand
    Finder
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) RINA IMQ CSA VDE EAC CE EN 60715 EN 61000-4-4 EN 61000-4-5
  • Rated impulse voltage (Uimp)
    3.6 kV
  • Connection type
    Box-clamp
  • Ambient air temperature for operation
    -40...+70 °C
  • Contents
    relay socket
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    3 Pole(s)
  • Technology used in component
    Diode coil EMC surge suppressor module
  • Net Width (mm)
    27 mm
  • Main function
    Relay
  • Control Voltage (DC)
    24Vdc
  • Contacts coating
    AgNi (Silver Nickel)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
