44.52.7.024.0000 Finder Control Relays

44.52.7.024.0000 on Powermatic Associates
Finder

Part#:44.52.7.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

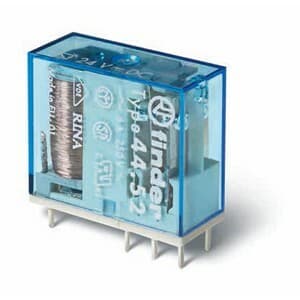

Miniature electromechanical PCB mount relay - Flux proof (RTII) - Finder (44 series) - Control coil voltage 24Vdc - 2 poles (2P) - 2C/O / DPDT (Double Pole Double Throw) contact - Rated current 6A (250Vac; AC-1) / 6A (30Vdc; DC-1) - Rated switching power

Product Details

  • Ambient air temperature for operation
    -40...+85 °C
  • Mounting mode
    PCB Plug-in
  • Product series / family name
    44 series
  • Connection type
    Solder pin
  • Rated current
    6A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.13A (220Vdc; DC-1)
  • Degree of protection
    RT II
  • Rated impulse voltage (Uimp)
    6 kV
  • Main function
    Relay
  • Poles
    2 Pole(s)
  • Electrical durability (with load)
    150 000 operations
  • Mechanical durability (at no load)
    20 000 000 operations
  • Distance
    5mm pins pitch
  • Rated voltage (AC)
    250Vac
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Contacts coating
    AgNi (Silver Nickel)
  • Net Width (mm)
    29 mm
  • Primary brand
    Finder
  • Rated power
    250VA (230Vac; AC-15) 1500VA (250Vac; AC-1)
  • Control Voltage (DC)
    24Vdc
  • Compliant with standard(s)
    cURus CCC RINA IMQ CSA VDE EAC EN 60715 EN 61000-4-5 EN 61810-1
  • Net Depth (mm)
    12.4 mm
  • Net Height (mm)
    25 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

44.52.7.024.0000 Related Documents

Finder - 44 Series - Catalogue.pdf
