40.52.7.024.5000 Finder Control Relays

40.52.7.024.5000 on Powermatic Associates
Finder

Part#:40.52.7.024.5000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

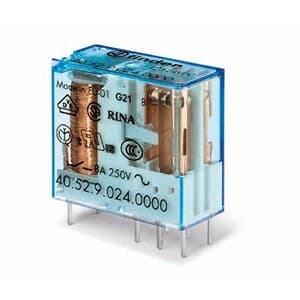

Finder 40.52.7.024.5000 is a relay with solder pin connection type, designed for a rated current of 8A at 250Vac (AC-1) and 8A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is suitable for ambient air temperatures ranging from -40 to +85 degrees Celsius for operation and storage. This relay features a rated voltage of 250Vac, a control voltage of 6 kV, and a power consumption of 0.5 W. It is designed for PCB or plug-in mounting with dimensions of 29 mm in mounting mode, 25 mm in net depth, and 12.4 mm in power consumption width. The relay has a response time of 5.3mm pins pitch, supports up to 100,000 operations for Normally Closed (NC) circuits, and has a durability of 10,000,000 operations. The contact material is AgNi+Au (gold-plated silver-nickel), indicating its suitability for reliable electrical connections.

Product Details

  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Degree of protection
    RT II
  • Net Depth (mm)
    12.4 mm
  • Net Height (mm)
    25 mm
  • Main function
    Relay
  • Poles
    2 Pole(s)
  • Mounting mode
    PCB Plug-in
  • Electrical durability (with load)
    100 000 operations
  • Product series / family name
    40 series
  • Rated power
    750VA (230Vac; AC-15) 2000VA (250Vac; AC-1) 0.5W
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Distance
    5.3mm pins pitch
  • Connection type
    Solder pin
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Ambient air temperature for operation
    -40...+85 °C
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Width (mm)
    29 mm
  • Rated current
    8A (250Vac; AC-1) 8A (30Vdc; DC-1) 0.6A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Control Voltage (DC)
    24Vdc
  • Power consumption
    0.5 W
  • Mechanical durability (at no load)
    10 000 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
