40.31.7.012.1020 Finder Control Relays

40.31.7.012.1020 on Powermatic Associates
Finder

Part#:40.31.7.012.1020

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

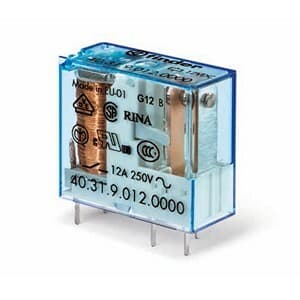

Miniature electromechanical PCB power relay - Flux proof (RTII) - Finder (40 series) - Control coil voltage 12Vdc - 1 pole (1P) - 1C/O / SPDT (Single Pole Double Throw) contact - Rated current 12A (250Vac; AC-1) / 12A (30Vdc; DC-1) - Rated switching power

Product Details

  • Degree of protection
    RT II
  • Net Height (mm)
    25 mm
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Technology used in component
    sensitive DC control coil
  • Net Width (mm)
    29 mm
  • Distance
    3.5mm pins pitch
  • Electrical durability (with load)
    200 000 operations
  • Net Depth (mm)
    12.4 mm
  • Connection type
    Solder pin
  • Power consumption
    0.5 W
  • Contacts coating
    AgNi (Silver Nickel)
  • Ambient air temperature for operation
    -40...+85 °C
  • Mechanical durability (at no load)
    10 000 000 operations
  • Product series / family name
    40 series
  • Rated power
    1000VA (230Vac; AC-15) 3000VA (250Vac; AC-1) 0.5W
  • Mounting mode
    PCB Plug-in
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Primary brand
    Finder
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.6A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Poles
    1 Pole(s)
  • Rated impulse voltage (Uimp)
    6 kV
  • Control Voltage (DC)
    12Vdc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
