9541 Festo Stop Valves (non-return)

9541 on Powermatic Associates
Festo

Part#:9541

Alt. Part#:QH-1/4

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

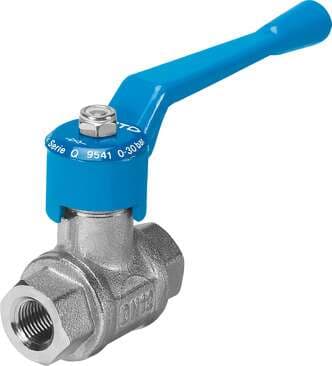

ball valve QH-1/4 Manuel brass ball valve with ISO 228 thread. Valve function: 2/2 bistable, Pneumatic connection, port 1: G1/4, Pneumatic connection, port 2: G1/4, Type of actuation: manual, Mounting type: Line installation

Product Details

  • Type code
    QH
  • Pneumatic connection 2
    G¼
  • Nominal width
    10 mm
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Water
  • Design
    Ball valve
  • Pneumatic connection 1
    G1/4
  • Standard nominal flow rate
    3400 l/min
  • Sealing principle
    Soft
  • Type of mounting
    Line installation
  • Ambient temperature
    -20 °C ... 180 °C
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Nominal pressure of fitting PN
    30
  • Valve function
    2/2 bistable
  • Actuation type
    Manual
  • Housing material
    Brass
  • Symbol
    00991458

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
