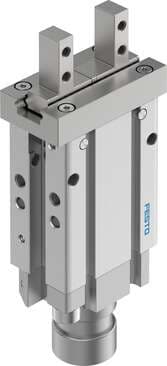

8116801 Festo Pneumatic Grippers

Product Details

• Size
  16
• Max. gripper jaw backlash Sz
  0 mm
• Type code
  DHPC
• Gripper function
  Parallel
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Gripping force per gripper jaw at 6 bar, opening
  50.5 N
• Product weight
  136 g
• Note on materials
  Free of copper and PTFE RoHS-compliant
• Operating pressure
  2.5 bar ... 8 bar
• Rotational symmetry
  ≤ 0.2 mm
• Max. gripper jaw angular play ax, ay
  0 deg
• Mode of operation
  Single-acting Closed
• Symbol
  00997348
• Min. closing time at 6 bar
  65 ms
• Maximum force on gripper jaw Fz, static
  49 N
• Max. mass per external gripper finger
  360 g
• Pneumatic connection
  M5
• Stroke per gripper jaw
  3 mm
• Mounting position
  Any
• Position sensing
  For proximity sensor
Min. opening time at 6 bar
30 ms
Ambient temperature
-10 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
0.34 Nm
Housing material
Aluminum, anodized
Number of gripper jaws
2
Guide
Ball guide
Max. operating frequency of pneumatic gripper
3 Hz
Corrosion resistance class (CRC)
0 - No corrosion stress
Maximum torque on gripper jaw, My static
0.68 Nm
Type of mounting
Optionally: With internal thread and dowel pin
Max. interchangeability
0.2 mm
Pneumatic gripper repetition accuracy
≤ 0.02 mm
Design
Connection via mounting spigot Positively driven motion sequence
Total gripping force at 6 bar, opening
101 N
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Mass moment of inertia
0.167 kgcm²
Maximum torque on gripper jaw, Mx static
0.34 Nm
Gripper jaw material
High-alloy stainless steel
