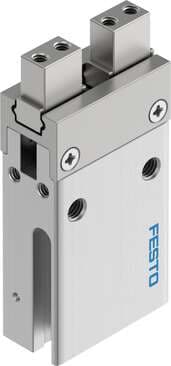

8116740 Festo Pneumatic Grippers

Product Details

• Max. interchangeability
  0.2 mm
• Max. gripper jaw backlash Sz
  0 mm
• Gripper function
  Parallel
• Size
  6
• Max. gripper jaw angular play ax, ay
  0 deg
• Number of gripper jaws
  2
• Total gripping force at 6 bar, closing
  11 N
• Min. opening time at 6 bar
  9 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum torque on gripper jaw, My static
  0.04 Nm
• Pneumatic connection
  M3
• Stroke per gripper jaw
  2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.02 mm
• Mounting position
  Any
• Position sensing
  For proximity sensor
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Gripping force per gripper jaw at 6 bar, opening
  7.3 N
• Operating pressure
  1.5 bar ... 8 bar
• Rotational symmetry
  ≤ 0.2 mm
• Guide
  Ball guide
Symbol
00991894
Max. operating frequency of pneumatic gripper
3 Hz
Min. closing time at 6 bar
11 ms
Maximum force on gripper jaw Fz, static
5 N
Type of mounting
Optionally: Direct fastening via thread
Type code
DHPC
Mode of operation
Double-acting
Design
Connection direction downwards Positively driven motion sequence
Ambient temperature
-10 °C ... 60 °C
Mass moment of inertia
0.011 kgcm²
Maximum torque on gripper jaw, Mz static
0.02 Nm
Total gripping force at 6 bar, opening
14.6 N
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Gripping force per gripper jaw at 6 bar, closing
5.5 N
Max. mass per external gripper finger
18 g
Note on materials
Free of copper and PTFE RoHS-compliant
Maximum torque on gripper jaw, Mx static
0.02 Nm
Product weight
25 g
Housing material
Aluminum, anodized
Gripper jaw material
High-alloy stainless steel

Related documents 8116740 Specs
