8104299 Festo Accessories for Dispensing Systems

Name: 8104299
Brand: Festo

Part#:8104299

Manufacturer:Festo

Alt. Part#:VAVN-N-A1.6-06-60-V-V1-&

Product Lifecycle:Active

Get a quick Quote!

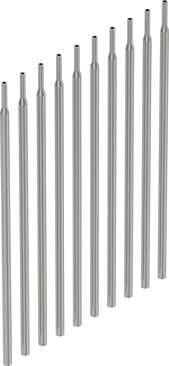

dos. needle set VAVN-N-A1.6-06-60-V-V1-&

About the manufacturer: Festo is one of the manufacturers that offers Accessories for Dispensing Systems that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8104299 Festo price in the box on the right side or send a quick quote.

Product Details

Medium
Liquid media Gaseous media
Design of dosing needle
with taper
Note on standard nominal flow rate
In case of a pressure drop of 1 -> 0 bar
Pack size
10
Operating pressure
0 MPa ... 0.4 MPa
Type code
VAVN
Storage temperature
-20 °C ... 70 °C
Materials in contact with the media
High-alloy stainless steel
Material number for dosing needle
1.4404
Nominal width of dosing needle
0.6 mm
Note on flow rate Kv
Für Medium Wasser
Ambient temperature
5 °C ... 60 °C
Temperature of medium
5 °C ... 60 °C
Fluid connector
Clamped terminal connection
Length of dosing needle
60 mm
Flow rate Kv
0.012 m³/h
Mounting position
Any
Product weight
4.1 g
Corrosion resistance class (CRC)
3 - High corrosion stress
Information on medium
Observe resistance of materials that come into contact with media Maximum particle size 5 µm

Material of dosing needle

High-alloy stainless steel

Dosing needle outside diameter

1.6 mm

Standard nominal flow rate

5.47 l/min

For use in the food industry

See supplementary material information

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
