8104290 Festo Accessories for Dispensing Systems

Product Details

• Pack size
  10

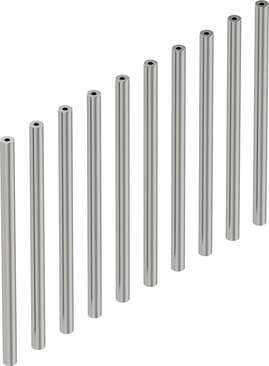

• Length of dosing needle
  30 mm
• Mounting position
  Any
• Ambient temperature
  5 °C ... 60 °C
• Temperature of medium
  5 °C ... 60 °C
• Material number for dosing needle
  1.4404
• Operating pressure
  0 MPa ... 0.4 MPa
• Corrosion resistance class (CRC)
  3 - High corrosion stress
• Information on medium
  Observe resistance of materials that come into contact with media Maximum particle size 5 µm
• Fluid connector
  Clamped terminal connection
• Dosing needle outside diameter
  1.6 mm
• Flow rate Kv
  0.01 m³/h
• Type code
  VAVN
• Storage temperature
  -20 °C ... 70 °C
• Medium
  Liquid media Gaseous media
• Note on standard nominal flow rate
  In case of a pressure drop of 1 -> 0 bar
• Standard nominal flow rate
  4.76 l/min
• Product weight
  4.1 g
• Materials in contact with the media
  High-alloy stainless steel
• Material of dosing needle
  High-alloy stainless steel
Nominal width of dosing needle
0.6 mm
Note on flow rate Kv
Für Medium Wasser
For use in the food industry
See supplementary material information
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
