8104292 Festo Accessories for Dispensing Systems

Name: 8104292
Brand: Festo

Part#:8104292

Manufacturer:Festo

Alt. Part#:VAVN-N-A1.6-06-60-V1-P10

Product Lifecycle:Active

Get a quick Quote!

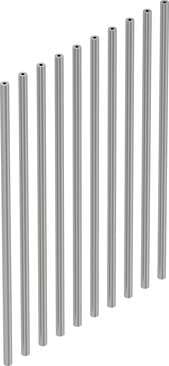

dos. needle set VAVN-N-A1.6-06-60-V1-P10

About the manufacturer: Festo is one of the manufacturers that offers Accessories for Dispensing Systems that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8104292 Festo price in the box on the right side or send a quick quote.

Product Details

Medium
Liquid media Gaseous media
Fluid connector
Clamped terminal connection
Flow rate Kv
0.008 m³/h
Length of dosing needle
60 mm
Temperature of medium
5 °C ... 60 °C
Note on standard nominal flow rate
In case of a pressure drop of 1 -> 0 bar
Nominal width of dosing needle
0.6 mm
Note on flow rate Kv
Für Medium Wasser
Storage temperature
-20 °C ... 70 °C
Information on medium
Observe resistance of materials that come into contact with media Maximum particle size 5 µm
Material number for dosing needle
1.4404
Materials in contact with the media
High-alloy stainless steel
Material of dosing needle
High-alloy stainless steel
Pack size
10
For use in the food industry
See supplementary material information
Ambient temperature
5 °C ... 60 °C
Dosing needle outside diameter
1.6 mm
Standard nominal flow rate
3.91 l/min
Mounting position
Any
Product weight
8.3 g

Operating pressure

0 MPa ... 0.4 MPa

Type code

VAVN

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Corrosion resistance class (CRC)

3 - High corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
