8104298 Festo Accessories for Dispensing Systems

Name: 8104298
Brand: Festo

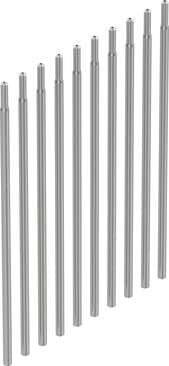

Festo 8104298 dos. needle set VAVN-N-A1.6-03-60-F-V-V&

Part#:8104298

Manufacturer:Festo

Alt. Part#:VAVN-N-A1.6-03-60-F-V-V&

Product Lifecycle:Active

Get a quick Quote!

dos. needle set VAVN-N-A1.6-03-60-F-V-V&

About the manufacturer: Festo is one of the manufacturers that offers Accessories for Dispensing Systems that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8104298 Festo price in the box on the right side or send a quick quote.

Product Details

Pack size
10
Operating pressure
0 MPa ... 0.4 MPa
Type code
VAVN
Product weight
8.1 g
Temperature of medium
5 °C ... 60 °C
Material number for dosing needle
1.4404
Nominal width of dosing needle
0.3 mm
Standard nominal flow rate
1.31 l/min
Ambient temperature
5 °C ... 60 °C
Design of dosing needle
with chamfer with taper
Fluid connector
Clamped terminal connection
Flow rate Kv
0.003 m³/h
Mounting position
Any
Storage temperature
-20 °C ... 70 °C
Information on medium
Observe resistance of materials that come into contact with media Maximum particle size 5 µm
Note on standard nominal flow rate
In case of a pressure drop of 1 -> 0 bar
Dosing needle outside diameter
1.6 mm
Note on flow rate Kv
Für Medium Wasser
Corrosion resistance class (CRC)
3 - High corrosion stress
Medium
Liquid media Gaseous media

Materials in contact with the media

High-alloy stainless steel

Material of dosing needle

High-alloy stainless steel

Length of dosing needle

60 mm

For use in the food industry

See supplementary material information

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
