8104293 Festo Accessories for Dispensing Systems

Name: 8104293
Brand: Festo

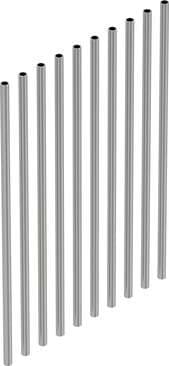

Festo 8104293 dos. needle set VAVN-N-A1.6-12-60-V1-P10

Part#:8104293

Manufacturer:Festo

Alt. Part#:VAVN-N-A1.6-12-60-V1-P10

Product Lifecycle:Active

Get a quick Quote!

dos. needle set VAVN-N-A1.6-12-60-V1-P10

About the manufacturer: Festo is one of the manufacturers that offers Accessories for Dispensing Systems that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8104293 Festo price in the box on the right side or send a quick quote.

Product Details

Type code
VAVN
Material of dosing needle
High-alloy stainless steel
Temperature of medium
5 °C ... 60 °C
Length of dosing needle
60 mm
Nominal width of dosing needle
1.2 mm
Standard nominal flow rate
18.15 l/min
Mounting position
Any
Materials in contact with the media
High-alloy stainless steel
Fluid connector
Clamped terminal connection
Dosing needle outside diameter
1.6 mm
Flow rate Kv
0.034 m³/h
Storage temperature
-20 °C ... 70 °C
Medium
Liquid media Gaseous media
Material number for dosing needle
1.4404
Operating pressure
0 MPa ... 0.4 MPa
For use in the food industry
See supplementary material information
Ambient temperature
5 °C ... 60 °C
Information on medium
Observe resistance of materials that come into contact with media Maximum particle size 5 µm
Note on standard nominal flow rate
In case of a pressure drop of 1 -> 0 bar
Pack size
10

Note on flow rate Kv

Für Medium Wasser

Corrosion resistance class (CRC)

3 - High corrosion stress

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Product weight

4.2 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
