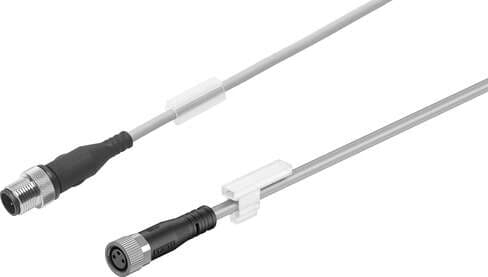

8091512 Festo Cable Assemblies

Product Details

• Cable designation
  Without label holder
• Electrical connection 1, cable outlet
  Straight
• Electrical connection 2, connection technology
  M12x1 A-coded as per EN 61076-2-101
• Electrical connection 2, number of pins/wires
  3
• Bending radius, flexible cable installation
  39 mm
• Special features
  Oil-resistant
• Material of cable sheath
  TPE-U(PUR)
• Material of pin contacts
  Copper alloy, gold-plated
• Explosion prevention and protection
  Observe the information on the certificate Zone 22 (ATEX)
• Electrical connection 1, design
  Round
• Electrical connection 1, connection type
  Socket
• Electrical connection for input 1, connection pattern
  00991871
• Electrical connection 2, connection type
  Plug
• Electrical connection 2, occupied pins/wires
  3
• Operating voltage range AC
  0 V ... 60 V
• Cable length
  1 m
• Cable characteristic
  Standard
• Nominal conductor cross section
  0.25 mm²
• Degree of protection
  IP65 IP69K
• Note on materials
  Free of copper and PTFE Free of phosphoric acid ester
Contamination level
3
Housing material
TPE-U(PUR)
Conforms to standard
Wire colors and connection numbers as per EN 60947-5-2 EN 61076-2-104
Electrical connection 1, function
Field device end
Electrical connection 1, number of pins/wires
3
Electrical connection 2, type of mounting
Screw-type lock
Surge resistance
1.5 kV
Cable diameter tolerance
± 0.1 mm
Ambient temperature with flexible cable installation
-5 °C ... 70 °C
Material of screw-type lock
Brass, nickel-plated
Product weight
39 g
Electrical connection 1, connection technology
M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, type of mounting
Screw-type lock
Electrical connection 2, cable outlet
Straight
DC operating voltage range
0 V ... 60 V
Current rating at 40°C
3 A
Bending radius, fixed cable installation
12 mm
Cable design
3 x 0.25 mm²
Ambient temperature
-25 °C ... 70 °C
Color cable sheath
Gray
Housing colour
Black
Insulating sheath material
PP
Type code
NEBU
Electrical connection 1, occupied pins/wires
3
Electrical connection 2, design
Round
Electrical connection 2, function
Control side
Electrical connection 2, connection pattern
00995573
Connector cable test conditions
Flexural strength: as per Festo standard Cable chain: 5 million cycles, bending radius 75 mm
Cable diameter
3.8 mm
Note on degree of protection
In mounted state
CE marking (see declaration of conformity)
As per EU low voltage directive As per EU RoHS directive
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Seals material
NBR
