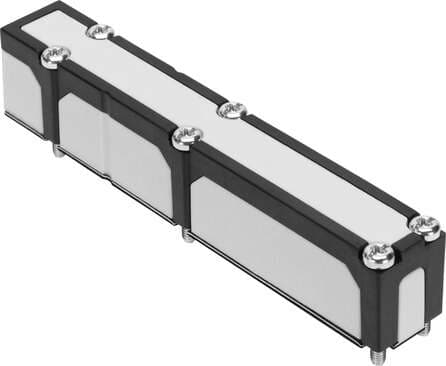

8091509 Festo Pneumatic Components

Product Details

• Electric IO-Link® connection, connection pattern
  00991867
• IO-Link®, output current
  80 mA with USB operation Max. input current with external supply (<2.5 A)
• IO-Link®, communication mode
  COM1 (4.8 kBd), COM2 (38.4 kBd), COM3 (230.4 kBd)
• IO-Link®, minimum cycle time
  1.5 ms
• Reverse polarity protection
  for operating voltage connections
• Electrical connection IO-Link, occupied pins/wires
  3
• IO-Link®, port class
  A B, with accessories
• Type code
  CDSU
• Ambient temperature
  0 °C ... 55 °C
• USB interface
  USB 2.0 type B, mini
• IO-Link®, number of ports
  1
• Overload protection
  Not available
• Conforms to standard
  EN 61131-9
• Electrical IO-Link® connection, connection type
  Socket
• Power supply, information on connection technology
  for plugs with exterior Ø 5.5 mm/interior-Ø 2.1 mm
• Storage temperature
  -10 °C ... 75 °C
• Certification
  RCM compliance mark
• USB interface, galvanic isolation
  yes
• IO-Link®, process data width IN
  0–32 bytes parameterizable
• Protocol
  IO-Link®
Application note
for use with the USB IO-Link Master Tool software (available from the support portal) for Windows version 7 or above (32/64-bit).
Input voltage
5 V DC at the USB connection 24 V DC ± 6 V via external supply
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
IO-Link®, data memory available
2 kByte/port
Power supply, function
Additional power supply
IO-Link®, process data width OUT
0–32 bytes parameterizable
Power supply, type of connection
Socket
IO-Link®, protocol version
Master V 1.0 Master V 1.1
Electrical IO-Link® connection, number of pins/wires
5
Input current
Max. 2.5 V DC via external supply Max. 600 mA at the USB connection
Degree of protection
IP20
Housing material
Wrought aluminum alloy, anodized
USB interface, plug pattern
00995868
Short-circuit protection
yes
Electrical connection, IO-Link®, connection technology
M12x1, A-coded as per EN 61076-2-101
Power supply, connection pattern
00995993
Power supply, connection technology
Coaxial
Power supply, number of pins/wires
2
Output voltage
24 V DC ± 10% with USB operation 24 V DC ± 6 V with external supply (max. input voltage)
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Product weight
106 g
