8081006 Festo Mechanical & Manual Valves
Part#:8081006
Alt. Part#:VHEF-H-M52-M-G14
Manufacturer:Festo
Category:Mechanical & Manual Valves
Product Lifecycle:Active
Product description

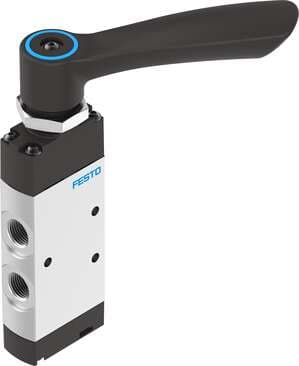

hand lever valve VHEF-H-M52-M-G14 Valve function: 5/2 monostable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 1200 l/min, Operating pressure MPa: -0,095 - 1 MPa
Product Details
- Cover material PA-reinforced
- Max. transverse load on actuator 200 N
- Standard nominal flow rate 1200 l/min
- Design Piston gate valve
- Application note Operate by hand only
- Max. switching frequency 0.5 Hz
- Ambient temperature -10 °C ... 60 °C
- Product weight 298 g
- Pneumatic connection 2 G¼
- Lever material PA-reinforced
- Lap Overlap
- Actuation type Manual
- Type code VHEF
- Mounting position Any
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Type of mounting Optionally: With through-hole
- Pneumatic connection 5 G1/4
- Housing material Wrought aluminum alloy, anodized
- Valve function 5/2, monostable
- Max. force on actuator 200 N
- Width 20 mm
- Nominal width 7 mm
- Sealing principle Soft
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Pneumatic connection 1 G1/4
- Pneumatic connection 4 G1/4
- Pneumatic working port G1/4
- Reset method Mechanical spring
- Flow direction Reversible
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pneumatic connection 3 G1/4
- Seals material NBR
- Operating pressure -0.95 bar ... 10 bar
- Exhaust air function With flow control option
- Type of control Direct
- Symbol 00995882
- Temperature of medium -10 °C ... 60 °C
- Actuating torque 0.6 Nm
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
