8081769 Festo Pneumatic Components

8081769 on Powermatic Associates
Festo

Part#:8081769

Alt. Part#:DYSS-4-4-Y1F

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

shock absorber DYSS-4-4-Y1F Size: 4, Stroke: 4 mm, Cushioning: self-adjusting, Assembly position: Any, Position detection: No

Product Details

  • Size
    4
  • Mounting position
    Any
  • Ambient temperature
    -10 °C ... 80 °C
  • Max. residual energy
    0.006 J
  • Housing material
    High-alloy steel
  • Cushioning
    Self-adjusting
  • Max. impact velocity
    1 m/s
  • Cushioning length
    4 mm
  • Resetting force
    0.7 N
  • Seals material
    NBR
  • Max. tightening torque
    1 Nm
  • Symbol
    00991495
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Max. energy absorption per stroke
    0.8 J
  • Product weight
    4.5 g
  • Piston rod material
    High-alloy steel
  • Stroke
    4 mm
  • Position sensing
    None
  • Reset time at min. ambient temperature
    1 s
  • Max. energy absorption per hour
    5500 J
  • Type of mounting
    With lock nut
  • Type code
    DYSS
  • Reset time at room temperature
    0.2 s
  • Mode of operation
    Single-acting Pushing
  • Max. stop force
    100 N
  • Note on materials
    RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8081769 Related Documents

8081769 DataSheet.pdf

Similar products from: Festo Pneumatic Components

550481 on Powermatic Associates

550481

Festo

plug socket with cable KMYZ-4-2,5-B-EX Combination of MSZB and MSZC connection. Maritime classification: see certificate, Mounting type: On solenoid valve with M2 central screw, Assembly position: Any, Product weight: 34,5 g, Electrical connection: (* Plu

8 in stock
159596 on Powermatic Associates

159596

Festo

flanged pressure gauge FMA-40-10-1/4-EN With display unit in bar and psi. Indicating range [bar]: 0 - 10 bar, Conforms to standard: EN 837-1, Nominal size of pressure gauge: 40, Design structure: Bourdon-tube pressure gauge, Mounting type: Front panel ins

1 in stock
1589339 on Powermatic Associates

1589339

Festo

plug socket NEFF-S1G44LB Protection class: IP40, Ambient temperature: -5 - 50 °C, Materials note: Conforms to RoHS, Corrosion resistance classification CRC: 2 - Moderate corrosion stress

3 in stock
195495 on Powermatic Associates

195495

Festo

retainer GR-H-QS-3-4 For mounting the one-way flow control valves with screws, series GR/GRO-QS-... Materials note: Free of copper and PTFE

4 in stock
184318 on Powermatic Associates

184318

Festo

low consumption air gun LSP-1/4-C Made of plastic. Exhaust-air function: Air jet can be dosed, Operating pressure: 0 - 10 bar, Standard nominal flow rate: 120 l/min, Sound pressure level: 90 dB(A), Ambient temperature: -10 - 50 °C

11 in stock
2950 on Powermatic Associates

2950

Festo

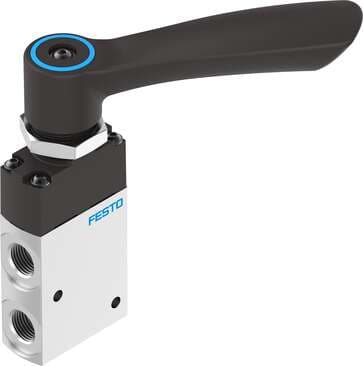

toggle lever valve LOS-3-1/8 With idle return, piloted, normally open. Valve function: 3/2 open, monostable, Type of actuation: mechanical, Standard nominal flow rate: 175 l/min, Operating pressure: 3,5 - 8 bar, Design structure: Poppet seat

852 in stock

Manufacturer warranty

8081769 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 8081769 with other Pneumatic Components products

Size

Mounting position

Ambient temperature

Max. residual energy

Housing material

Cushioning

Max. impact velocity

Cushioning length

Resetting force

Seals material

Selected product

8081769
Backordered
8081769
Festo

shock absorber DYSS-4-4-Y1F Size: 4, Stroke: 4 mm, Cushioning: self-adjusting, Assembly position: An...

Size4

Mounting positionAny

Ambient temperature-10 °C ... 80 °C

Max. residual energy0.006 J

Housing materialHigh-alloy steel

CushioningSelf-adjusting

Max. impact velocity1 m/s

Cushioning length4 mm

Resetting force0.7 N

Seals materialNBR

15037
95 in stock
15037
Festo

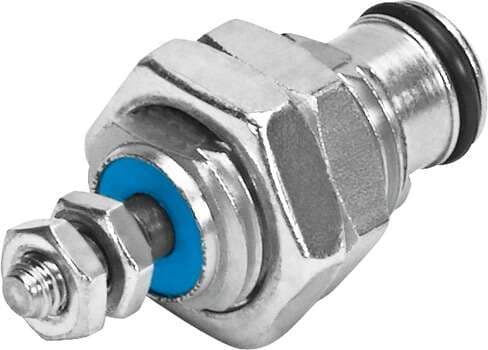

cartridge cylinder EGZ-10-10 With double-ended male thread on cylinder housing . Stroke: 10 mm, Pist...
