8081005 Festo Mechanical & Manual Valves

Name: 8081005
Brand: Festo

Part#:8081005

Manufacturer:Festo

Alt. Part#:VHEF-H-M52-M-N14

Product Lifecycle:Active

Get a quick Quote!

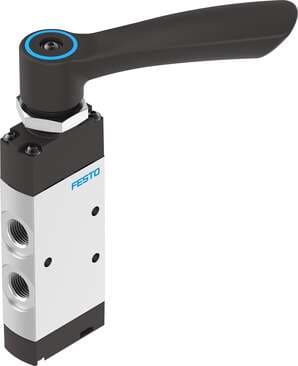

hand lever valve VHEF-H-M52-M-N14 Valve function: 5/2 monostable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 1200 l/min, Operating pressure MPa: -0,095 - 1 MPa

About the manufacturer: Festo is one of the manufacturers that offers Mechanical & Manual Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8081005 Festo price in the box on the right side or send a quick quote.

Product Details

Cover material
PA-reinforced
Pneumatic working port
1/4 NPT
Sealing principle
Soft
Max. switching frequency
0.5 Hz
Temperature of medium
-10 °C ... 60 °C
Pneumatic connection 1
1/4 NPT
Pneumatic connection 5
1/4 NPT
Max. transverse load on actuator
200 N
Width
20 mm
Nominal width
7 mm
Application note
Operate by hand only
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Actuating torque
0.6 Nm
Pneumatic connection 2
1/4 NPT
Seals material
NBR
Valve function
5/2, monostable
Operating pressure
-0.95 bar ... 10 bar
Design
Piston gate valve
Exhaust air function
With flow control option
Type of control
Direct

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Type of mounting

Optionally: With through-hole

Pneumatic connection 4

1/4 NPT

Housing material

Wrought aluminum alloy, anodized

Max. force on actuator

200 N

Actuation type

Manual

Reset method

Mechanical spring

Mounting position

Any

Explosion prevention and protection

Zone 1 (ATEX) Zone 22 (ATEX)

Ambient temperature

-10 °C ... 60 °C

Pneumatic connection 3

1/4 NPT

Lever material

PA-reinforced

Lap

Overlap

Standard nominal flow rate

1200 l/min

Type code

VHEF

Flow direction

Reversible

Symbol

00995882

Corrosion resistance class (CRC)

1 - Low corrosion stress

Product weight

298 g

Note on materials

RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
