8070255 Festo Ball Valves
Part#:8070255
Manufacturer:Festo
Alt. Part#:VZBM-A-11/4"-RP-25-F-3L-B2-PA40
Product Lifecycle:Active
Get a quick Quote!

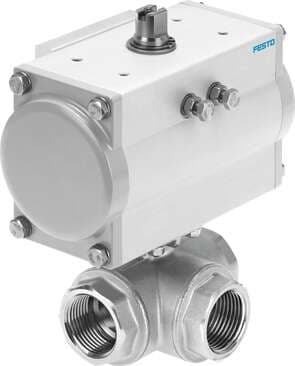

ball valve actuator unit VZBM-A-11/4"-RP-25-F-3L-B2-PA40 Brass, with double-acting actuator DFPD 3/2-way, nominal width 11/4", PN25, thread EN 10226-1. Design structure: (* 3-way ball valve, * Swivel drive), Type of actuation: pneumatic, Assembly position
About the manufacturer: Festo is one of the manufacturers that offers Ball Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 8070255 Festo price in the box on the right side or send a quick quote.
Product Details
- Mounting position Any
- Nominal pressure of fitting PN 25
- Housing material Brass, nickel-plated
- Actuation type Pneumatic
- Operating pressure 5.5 bar ... 8 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Material number of housing CW617N
- Material number for ball CW614N
- Switching position indication Slot direction = flow direction
- Nominal width DN 32
- Information on operating and pilot media Dew point min. 10 °C below the ambient and medium temperature Operation with oil lubrication possible (required for further use)
- Ambient temperature -20 °C ... 80 °C
- Flow rate Kv type L 121 m³/h
- Design 3-way ball valve Quarter turn actuator
- Fitting connection Rp1 1/4
- Symbol 00991921
- Temperature of medium -20 °C ... 130 °C
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Ball material Brass, chrome-plated
- Type code VZBM
- Type of mounting Line installation
- Medium Compressed air as per ISO 8573-1:2010 [-:-:-] Neutral liquids
- Seals material HNBR PTFE
- Material number for shaft CW614N
- Shaft material Brass
- Product weight 4911 g
- Corrosion resistance class (CRC) 1 - Low corrosion stress
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents 8070255 Specs
