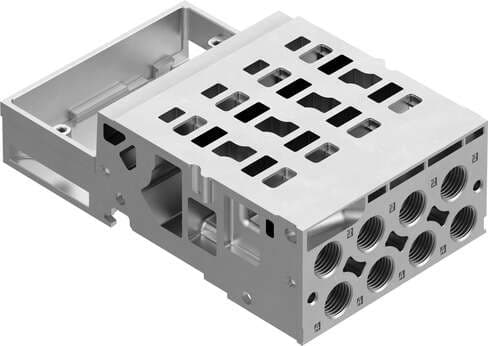

8043929 Festo Valve Manifold Accessories
Part#:8043929
Alt. Part#:VMPA14-FB-AP-4-1-S1
Manufacturer:Festo
Category:Valve Manifold Accessories
Product Lifecycle:Active
Product description
sub-base VMPA14-FB-AP-4-1-S1 Width: 65,5 mm, Length: 107,3 mm, Grid dimension: (* 14,8 mm, * 14,9 mm), Max. number of valve positions: 4, Operating pressure: -0,9 - 10 bar
Product Details
- Product weight 250 g
- Length 107.3 mm
- Max. no. of valve positions 4
- Pneumatic connection 4 G1/8 M7
- Width dimension 14.8 mm 14.9 mm
- Pilot pressure 3 bar ... 8 bar
- Material of sub-base Die-cast aluminum
- Pilot pressure MPa 0.3 MPa ... 0.8 MPa
- Operating pressure -0.09 MPa ... 1 MPa
- Pneumatic connection 2 G1/8 M7
- Width 65.5 mm
- Type code VPMA14
- Corrosion resistance class (CRC) 0 - No corrosion stress
- Ambient temperature -5 °C ... 50 °C
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
8043929 Related Documents
Manufacturer warranty
8043929 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 8043929 with other products
Product weight
Length
Max. no. of valve positio...
Pneumatic connection 4
Width dimension
Pilot pressure
Material of sub-base
Pilot pressure MPa
Operating pressure
Pneumatic connection 2
Width
Type code
Corrosion resistance clas...
Ambient temperature
Note on materials
Electrical connection 1, ...
Note on degree of protect...
Electrical connection 1, ...
Valve manifold design
Electrical connection 1, ...
Nominal operating voltage...
Max. no. of solenoid coil...
Degree of protection
End plate material
Pilot exhaust air port 82...
Pneumatic connection 3
Integrated function
Flow direction
Pneumatic connection 1
Pilot air port 12/14
Pneumatic connection 5
Selected product
8043929
Festo
sub-base VMPA14-FB-AP-4-1-S1 Width: 65,5 mm, Length: 107,3 mm, Grid dimension: (* 14,8 mm, * 14,9 mm...
Product weight250 g
Length107.3 mm
Max. no. of valve positions4
Pneumatic connection 4G1/8 M7
Width dimension14.8 mm 14.9 mm
Pilot pressure3 bar ... 8 bar
Material of sub-baseDie-cast aluminum
Pilot pressure MPa0.3 MPa ... 0.8 MPa
Operating pressure-0.09 MPa ... 1 MPa
Pneumatic connection 2G1/8 M7
Width65.5 mm
Type codeVPMA14
Corrosion resistance class (CRC)0 - No corrosion stress
Ambient temperature-5 °C ... 50 °C
Note on materialsRoHS-compliant
Electrical connection 1, connection technology-
Note on degree of protection-
Electrical connection 1, function-
Valve manifold design-
Electrical connection 1, connection type-
Nominal operating voltage DC-
Max. no. of solenoid coils-
Degree of protection-
End plate material-
Pilot exhaust air port 82/84-
Pneumatic connection 3-
Integrated function-
Flow direction-
Pneumatic connection 1-
Pilot air port 12/14-
Pneumatic connection 5-
570783
Festo
end plate VMPAL-EPL-CPX Width: 40 mm, Length: 107,3 mm, Max. number of valve positions: 32, Valve te...
Product weight130 g
Length107.3 mm
Max. no. of valve positions32
Pneumatic connection 4-
Width dimension-
Pilot pressure3 bar ... 8 bar
Material of sub-base-
Pilot pressure MPa0.3 MPa ... 0.8 MPa
Operating pressure-0.09 MPa ... 1 MPa
Pneumatic connection 2-
Width40 mm
Type codeVMPAL
Corrosion resistance class (CRC)3 - High corrosion stress
Ambient temperature-5 °C ... 50 °C
Note on materialsRoHS-compliant
Electrical connection 1, connection technologyInternally for CPX
Note on degree of protectionIn mounted state
Electrical connection 1, functionFieldbus
Valve manifold designValve sizes can be mixed
Electrical connection 1, connection typePlug
Nominal operating voltage DC24 V
Max. no. of solenoid coils32
Degree of protectionIP67
End plate materialDie-cast aluminum PA-reinfor...
Pilot exhaust air port 82/84-
Pneumatic connection 3-
Integrated function-
Flow direction-
Pneumatic connection 1-
Pilot air port 12/14-
Pneumatic connection 5-
560947
Festo
end plate VMPAL-EPR-SP Width: 28,8 mm, Length: 107,3 mm, Integrated function: Pilot air selector for...
Product weight180 g
Length107.3 mm
Max. no. of valve positions-
Pneumatic connection 4-
Width dimension-
Pilot pressure3 bar ... 8 bar
Material of sub-base-
Pilot pressure MPa0.3 MPa ... 0.8 MPa
Operating pressure-0.09 MPa ... 1 MPa
Pneumatic connection 2-
Width28.8 mm
Type codeVMPAL
Corrosion resistance class (CRC)3 - High corrosion stress
Ambient temperature-5 °C ... 50 °C
Note on materialsRoHS-compliant
Electrical connection 1, connection technology-
Note on degree of protectionIn mounted state
Electrical connection 1, function-
Valve manifold designValve sizes can be mixed
Electrical connection 1, connection type-
Nominal operating voltage DC-
Max. no. of solenoid coils-
Degree of protectionIP65 IP67
End plate materialDie-cast aluminum PA-reinfor...
Pilot exhaust air port 82/84M7
Pneumatic connection 3G1/4
Integrated functionCoding cover for determining...
Flow directionReversible
Pneumatic connection 1G1/4
Pilot air port 12/14M7
Pneumatic connection 5G1/4
