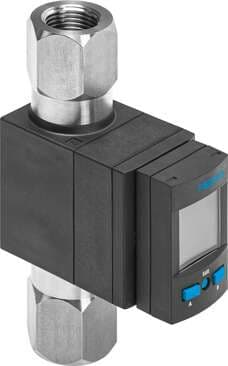

8036871 Festo Flow Sensors

Product Details

• Symbol
  00995566
• Note on materials
  RoHS-compliant
• Operating pressure
  0 bar ... 12 bar
• Information on operating and pilot media
  Media with a kinematic viscosity = 1.8 mm²/sec. [cSt]. Compatibility of the media with the substances that come into contact with the media must be ensured.
• Switching output
  2 x PNP or 2 x NPN switchable
• Analog output
  0 - 10 V 1 - 5 V
• IO-Link®, port class
  A
• KC characters
  KC EMC
• Measured variable
  Flow rate Temperature
• Flow direction
  Unidirectional P1 -> P2
• Ambient temperature
  0 °C ... 50 °C
• Repetition accuracy of flow rate value
  < ±0.5 % FS for flow rate <= 50 % FS < ±1 % o.m.v. for flow rate >= 50 %FS
• Max. output current
  100 mA
• Flow characteristic curve, start value
  0 l/min
• Short-circuit protection
  yes
• IO-Link®, process data width OUT
  0 Byte
• IO-Link®, process data content IN
  1 bit BDC (volume monitoring) 2 bit BDC (flow monitoring)
• Max. cable length
  20 m for IO-Link® operation 30 m
• Mounting position
  Any
• Certification
  RCM compliance mark c UL us - Listed (OL)
Flow measuring range start value
1.8 l/min
Information on operating pressure
Max. 12 bar at 40°C Max. 6 bar at 100 °C
Nominal temperature
23 °C
Temperature co-efficient margin in ± %FS/K
Typ. ±0.05% FS/K
Flow characteristic curve, end value
32 l/min
Overload protection
Available
IO-Link®, data memory required
500 byte
Fluid connector
Internal thread G1/2
Product weight
400 g
Flow measuring range end value
32 l/min
Temperature of medium
0 °C ... 90 °C
Accuracy of flow rate
±2 % FS for flow rate <= 50 % FS ±3 % o.m.v. for flow rate >= 50 %FS
Switching element function
N/C contact/N/O contact switchable
Min. load resistance of voltage output
15 kOhm
IO-Link®, function classes
Binary data channel (BDC) Teach channel
IO-Link®, SIO mode support
Yes
IO-Link®, minimum cycle time
5 ms
DC operating voltage range
18 V ... 30 V
Displayable unit(s)
US gal °F
Corrosion resistance class (CRC)
3 - High corrosion stress
Type code
SFAW
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Method of measurement
Flow rate: vortex Temperature: PT1000
Operating medium
Liquid media Neutral liquids
Accuracy of temperature in ± °C
2 °C
Switching function
Window comparator Freely programmable
Protocol
IO-Link®
IO-Link®, communication mode
COM2 (38,4 kBd)
IO-Link®, process data width IN
3 Byte
IO-Link®, service data contents IN
32 bit volume measurement
Electrical connection
5-pin Plug, straight
Materials in contact with the media
EPDM (peroxide) PA6T/6I-reinforced
Max. load resistance of current output
500 Ohm
IO-Link®, protocol version
Device V 1.1
IO-Link®, profile
Smart sensor profile
Reverse polarity protection
for all electrical connections
Housing material
PA-reinforced
Degree of protection
IP65
