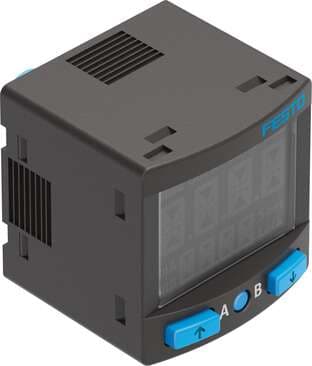

8035553 Festo Pressure Sensors

Product Details

• Electrical connection 1, connection technology
  Connection diagram L1J
• Electrical connection 1, number of pins/wires
  4
• Symbol
  00995686
• Measured variable
  Relative pressure
• Max. overload pressure
  5 bar
• Ambient temperature
  0 °C ... 50 °C
• Temperature co-efficient in ± %FS/K
  0.05 %FS/K
• DC operating voltage range
  15 V ... 30 V
• Pneumatic connection
  For pneumatic tubing outside diameter 4 mm
• Protection against tampering
  PIN code
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pressure measuring range end value
  1 bar
• CE marking (see declaration of conformity)
  As per EU EMC directive As per EU RoHS directive
• Note on materials
  RoHS-compliant
• Repetition accuracy in ± %FS
  0.3 %FS
• Short-circuit protection
  yes
• Mounting position
  Any
• Setting options
  Teach-in Via display and pushbuttons
• Setting range hysteresis
  0 % ... 90 %
• KC characters
  KC EMC
Certification
RCM compliance mark c UL us - Listed (OL)
Method of measurement
Piezoresistive pressure sensor
Information on operating and pilot media
Operation with oil lubrication possible
Accuracy in ± % FS
1.5 %FS
Switching element function
N/C contact/N/O contact switchable
Type of mounting
Front panel mounting With wall/surface bracket
Product weight
25 g
Type code
SPAN
Electrical connection for input 1, connection pattern
00995428
Overload pressure
72.5 psi
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
Switching output
2 x PNP or 2 x NPN switchable
Max. output current
100 mA
Housing material
PA-reinforced
Displayable unit(s)
MPa psi
Degree of protection
IP40
Setting range threshold value
0 % ... 100 %
Electrical connection 1, connection type
Plug
Pressure measuring range initial value
-1 bar
Certificate issuing authority
UL E322346
Temperature of medium
0 °C ... 50 °C
Switching function
Window comparator Auto difference monitoring
Reverse polarity protection
for all electrical connections
Materials in contact with the media
FPM PA-reinforced
Display type
Illuminated LCD
