8031305 Festo Mechanical & Manual Valves

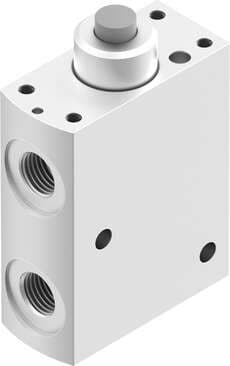

Festo 8031305 stem actuated valve VMEF-ST-M32-M-N18 Valve function: 3/2 closed, monostable, Type of actuation: mechanical, Width: 20 mm, Standard nominal flow rate: 750 l/min, Operating pressure MPa: -0,095 - 1 MPa
Festo

Part#:8031305

Manufacturer:Festo

Alt. Part#:VMEF-ST-M32-M-N18

Product Lifecycle:Active

Get a quick Quote!

stem actuated valve VMEF-ST-M32-M-N18 Valve function: 3/2 closed, monostable, Type of actuation: mechanical, Width: 20 mm, Standard nominal flow rate: 750 l/min, Operating pressure MPa: -0,095 - 1 MPa

About the manufacturer: Festo is one of the manufacturers that offers Mechanical & Manual Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8031305 Festo price in the box on the right side or send a quick quote.

Product Details

  • Operating pressure
    -0.95 bar ... 10 bar
  • Pneumatic working port
    1/8 NPT
  • Type code
    VMEF
  • Flow direction
    Reversible
  • Standard nominal flow rate
    750 l/min
  • Reset method
    Mechanical spring
  • Symbol
    00991294
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Ambient temperature
    -10 °C ... 60 °C
  • Product weight
    116 g
  • Housing material
    Wrought aluminum alloy, anodized
  • Width
    20 mm
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Actuating force
    46 N
  • Type of mounting
    With through-hole
  • Pneumatic connection 3
    1/8 NPT
  • Lap
    Zero overlap
  • Design
    Plate seat
  • Application note
    Do not use as mechanical stop
  • Max. switching frequency
    3 Hz
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection 1
    1/8 NPT
  • Note on materials
    RoHS-compliant
  • Valve function
    3/2, closed, monostable
  • Actuation type
    Mechanical
  • Nominal width
    5.6 mm
  • Sealing principle
    Soft
  • Type of control
    Direct
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    1/8 NPT
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 8031305 Specs

8031305 8031305 DataSheet.pdf
