8031338 Festo Mechanical & Manual Valves

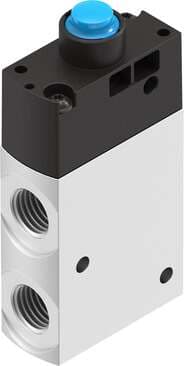

Festo 8031338 stem actuated valve VMEF-STCZ-M32-M-N14 Valve function: 3/2 closed, monostable, Type of actuation: mechanical, Width: 20 mm, Standard nominal flow rate: 870 l/min, Operating pressure MPa: -0,095 - 1 MPa
Festo

Part#:8031338

Manufacturer:Festo

Alt. Part#:VMEF-STCZ-M32-M-N14

Product Lifecycle:Active

Get a quick Quote!

stem actuated valve VMEF-STCZ-M32-M-N14 Valve function: 3/2 closed, monostable, Type of actuation: mechanical, Width: 20 mm, Standard nominal flow rate: 870 l/min, Operating pressure MPa: -0,095 - 1 MPa

About the manufacturer: Festo is one of the manufacturers that offers Mechanical & Manual Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8031338 Festo price in the box on the right side or send a quick quote.

Product Details

  • Operating pressure
    -0.95 bar ... 10 bar
  • Standard nominal flow rate
    870 l/min
  • Sealing principle
    Soft
  • Pilot pressure
    3 bar ... 10 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pilot air port 12/14
    M5
  • Pneumatic connection 2
    1/4 NPT
  • Seals material
    NBR
  • Lap
    Zero overlap
  • Reset method
    Mechanical spring
  • Type code
    VMEF
  • Pilot air supply port
    External
  • Symbol
    00995674
  • Actuating force
    14 N
  • Pneumatic connection 3
    1/4 NPT
  • Housing material
    Wrought aluminum alloy, anodized
  • Nominal width
    6 mm
  • Type of control
    Pilot-controlled
  • Max. switching frequency
    3 Hz
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-]
  • Note on materials
    RoHS-compliant
  • Actuation type
    Mechanical
  • Design
    Plate seat
  • Mounting position
    Any
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Ambient temperature
    -10 °C ... 60 °C
  • Type of mounting
    With through-hole
  • Cover material
    PA-reinforced
  • Valve function
    3/2, closed, monostable
  • Width
    20 mm
  • Pneumatic working port
    1/4 NPT
  • Application note
    Do not use as mechanical stop
  • Flow direction
    Reversible
  • Temperature of medium
    -10 °C ... 60 °C
  • Product weight
    124 g
  • Pneumatic connection 1
    1/4 NPT

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 8031338 Specs

8031338 8031338 DataSheet.pdf
