8022842 Festo Pressure Sensors

Name: 8022842
Brand: Festo

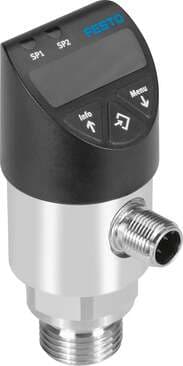

Festo 8022842 pressure sensor SPAW-P6R-G12M-2NV-M12 For measuring media pressures, pressure measuring range between 0 and +6 bar, pneumatic connection male thread G1/2. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU

Part#:8022842

Manufacturer:Festo

Alt. Part#:SPAW-P6R-G12M-2NV-M12

Product Lifecycle:Active

Get a quick Quote!

pressure sensor SPAW-P6R-G12M-2NV-M12 For measuring media pressures, pressure measuring range between 0 and +6 bar, pneumatic connection male thread G1/2. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to EU

About the manufacturer: Festo is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8022842 Festo price in the box on the right side or send a quick quote.

Product Details

Certification
RCM compliance mark c UL us - Listed (OL)
Pressure measuring range end value
6 bar
Ambient temperature
0 °C ... 80 °C
Switching element function
Switchable
Rise time
3 ms
Materials in contact with the media
High-alloy stainless steel
Switching status indication
LED red
Setting range hysteresis
0.5 % ... 99.5 %
Type code
SPAW
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Pressure measuring range initial value
0 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
Accuracy in ± % FS
1 %FS
Switching function
Freely programmable
DC operating voltage range
15 V ... 35 V
Housing material
ABS High-alloy stainless steel
Display type
4-character alphanumeric LED display
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
CE marking (see declaration of conformity)
As per EU EMC directive
Method of measurement
Piezoresistive pressure sensor

Temperature of medium

-20 °C ... 85 °C

Repetition accuracy in ± %FS

0.15 %FS

Analog output

0 - 10 V

Short-circuit protection

yes

Reverse polarity protection

for operating voltage

Setting options

Via display and pushbuttons

Setting range threshold value

0.5 % ... 100 %

Symbol

00995380

Switching output

2xNPN

Electrical connection

5-pin Round design

Product weight

230 g

Displayable unit(s)

MPa psi

Protection against tampering

PIN code

Measured variable

Relative pressure

Max. overload pressure

12 bar

Max. output current

250 mA

Type of mounting

With external thread

Pneumatic connection

External thread G1/2

Sealing ring material

NBR

Degree of protection

IP65 IP67

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
