8022757 Festo Pressure Sensors

8022757 on Powermatic Associates
Festo

Part#:8022757

Manufacturer:Festo

Category:Pressure Sensors

Alt. Part#:SPAW-P100R-G12M-2P-M12

Product Lifecycle:Active

Get a quick Quote!

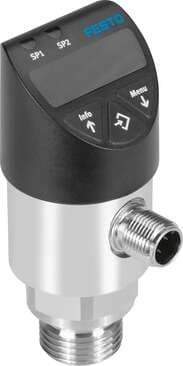

pressure sensor SPAW-P100R-G12M-2P-M12 For measuring media pressures, pressure measuring range between 0 and +100 bar, pneumatic connection male thread G1/2. Authorisation: (* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity): to

About the manufacturer: Festo is one of the manufacturers that offers Pressure Sensors that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 8022757 Festo price in the box on the right side or send a quick quote.

Product Details

  • Pressure measuring range end value
    100 bar
  • Ambient temperature
    0 °C ... 80 °C
  • Switching element function
    Switchable
  • Product weight
    230 g
  • Pneumatic connection
    External thread G1/2
  • Protection against tampering
    PIN code
  • Setting range threshold value
    0.5 % ... 100 %
  • Symbol
    00991165
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Max. overload pressure
    200 bar
  • Accuracy in ± % FS
    1 %FS
  • Switching function
    Freely programmable
  • Reverse polarity protection
    for operating voltage
  • Housing material
    ABS High-alloy stainless steel
  • Setting options
    Via display and pushbuttons
  • Corrosion resistance class (CRC)
    4 - Particularly high corrosion stress
  • Type code
    SPAW
  • Pressure measuring range initial value
    0 bar
  • Repetition accuracy in ± %FS
    0.15 %FS
  • Short-circuit protection
    yes
  • Type of mounting
    With external thread
  • Displayable unit(s)
    MPa psi
  • Display type
    4-character alphanumeric LED display
  • Certification
    RCM compliance mark c UL us - Listed (OL)
  • Measured variable
    Relative pressure
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [-:-:-] Gaseous media
  • Temperature of medium
    -20 °C ... 85 °C
  • Rise time
    3 ms
  • DC operating voltage range
    15 V ... 35 V
  • Mounting position
    Any
  • Materials in contact with the media
    High-alloy stainless steel
  • Switching status indication
    LED red
  • Degree of protection
    IP65 IP67
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Method of measurement
    Metal thin-film pressure sensor
  • Switching output
    2xPNP
  • Max. output current
    250 mA
  • Electrical connection
    4-pin Round design
  • Sealing ring material
    NBR
  • Setting range hysteresis
    0.5 % ... 99.5 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 8022757 Specs

8022757 8022757 DataSheet.pdf
