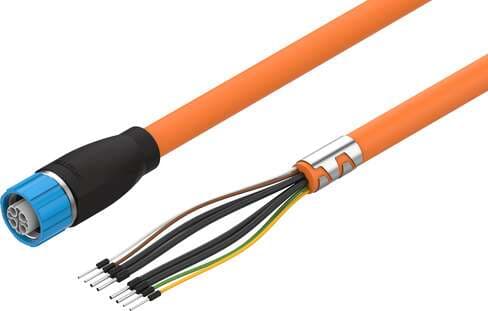

8004661 Festo Cable Assemblies

Product Details

• Based on norm
  EN 61984
• Electrical connection 1, design
  Round
• Electrical connection 1, occupied pins/wires
  6
• Electrical connection 2, function
  Control side
• Electrical connection 2, occupied pins/wires
  6
• Note on acceptable current load at 40°C
  8 A for conductor cross-section of 0.5 mm²
• Note on surge resistance
  4 kV for a conductor cross-section of 0.5 mm²
• Bending radius, flexible cable installation
  ≥ 128 mm
• Cable design
  4 x 1.5 mm² + 2 x (2 x 0.5 mm²) Shielded
• Note on degree of protection
  In mounted state
• Contamination level
  3
• Insulating sheath material
  TPE-E
• Type code
  NEBM
• Electrical connection 1, connection type
  Socket
• Electrical connection 1, cable outlet
  Straight
• Electrical connection 2, connection technology
  Open end
• Operating voltage range AC
  0 V ... 600 V
• Note on operating voltage range AC
  0 - 300 V for conductor cross-section of 0.5 mm²
• Cable characteristic
  Suitable for energy chains
• Wire ends
  Cable end sleeve
Ambient temperature with flexible cable installation
-40 °C ... 90 °C
Note on materials
RoHS-compliant
Electrical connection 1, function
Field device end
Electrical connection for input 1, connection pattern
00995654
Note on operating voltage range DC
0 - 300 V for conductor cross-section of 0.5 mm²
Cable length
7.5 m
Nominal conductor cross section
1.5 mm² 0.5 mm²
Material of cable sheath
TPE-U(PUR)
Electrical connection 1, connection technology
M16x0.75
Electrical connection 2, connection type
Cable
DC operating voltage range
0 V ... 600 V
Surge resistance
6 kV
Cable diameter
12.8 mm
Ambient temperature
-50 °C ... 90 °C
Color cable sheath
Orange
Cable designation
Without label holder
Electrical connection 1, number of pins/wires
8
Electrical connection 2, number of pins/wires
8
Current rating at 40°C
16 A
Bending radius, fixed cable installation
≥ 64 mm
Degree of protection
IP65
CE marking (see declaration of conformity)
As per EU low voltage directive As per EU RoHS directive
Corrosion resistance class (CRC)
0 - No corrosion stress
