578280 Festo Pneumatic Fittings

578280 on Powermatic Associates
Festo

Part#:578280

Alt. Part#:NPQH-L-G18-Q4-P10

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Only 4 left in stock. Order Now!

Apr 25, 2025

Product description

push-in L-fitting NPQH-L-G18-Q4-P10 Size: Standard, Nominal size: 3 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

Product Details

  • Nominal width
    3 mm
  • Pack size
    10
  • Corrosion resistance class (CRC)
    3 - High corrosion stress
  • Note on materials
    RoHS-compliant
  • Material of tube retaining claw
    High-alloy stainless steel
  • Design
    Push-pull principle
  • Product weight
    16.3 g
  • Housing material
    Brass, nickel-plated
  • Size
    Standard
  • Type code
    NPQH
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
  • Operating pressure for entire temperature range
    -0.95 bar ... 20 bar
  • Pneumatic connection 1
    External thread G1/8
  • Certificate issuing authority
    NSF C0523185
  • Type of seal on screwed trunnion
    Sealing ring
  • Information on operating and pilot media
    Operation with oil lubrication possible
  • Ambient temperature
    0 °C ... 150 °C
  • For use in the food industry
    See declaration of conformity NSF/ANSI 169
  • Material of threaded seal
    FPM
  • Releasing ring material
    Brass, nickel-plated
  • Mounting position
    Any
  • Max. tightening torque
    10 Nm
  • Pneumatic connection 2
    for pneumatic tubing outside diameter 4 mm
  • Material of tubing seal
    FPM

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

578280 Related Documents

578280 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

533285 on Powermatic Associates

533285

Festo

push-in L-fitting QBML-10-32-UNF-1/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

4 in stock
2030 on Powermatic Associates

2030

Festo

quick connector CK-1/4-PK-6 Male thread with sealing ring, metal version. Nominal size: 4,9 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Maritime classification: see certificate, Operating medium: (* Compressed air in accordanc

10 in stock
564817 on Powermatic Associates

564817

Festo

push-in connector QB-3/8H-1/4-U male thread with external hexagon. Size: Standard, Nominal size: 0,22 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

9 in stock
153330 on Powermatic Associates

153330

Festo

push-in L-fitting QSML-M3-3 360° orientable, male thread with external hexagon. Size: Mini, Nominal size: 0,8 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10

5 in stock
132047 on Powermatic Associates

132047

Festo

push-in fitting QS-G1/2-16-20 male thread with external hexagon. Size: Standard, Nominal size: 13 mm, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 20

20 in stock
572319 on Powermatic Associates

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock

Manufacturer warranty

578280 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

4

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 578280 with other Pneumatic Fittings products

Nominal width

Pack size

Corrosion resistance clas...

Note on materials

Material of tube retainin...

Design

Product weight

Housing material

Size

Type code

Selected product

578280
4 in stock
578280
Festo

push-in L-fitting NPQH-L-G18-Q4-P10 Size: Standard, Nominal size: 3 mm, Type of seal on screw-in stu...

Nominal width3 mm

Pack size10

Corrosion resistance class (CRC)3 - High corrosion stress

Note on materialsRoHS-compliant

Material of tube retaining clawHigh-alloy stainless steel

DesignPush-pull principle

Product weight16.3 g

Housing materialBrass, nickel-plated

SizeStandard

Type codeNPQH

578277
6 in stock
578277
Festo

push-in L-fitting NPQH-L-M5-Q6-P10 Size: Standard, Nominal size: 2,5 mm, Type of seal on screw-in st...

Nominal width2.5 mm

Pack size10

Corrosion resistance class (CRC)3 - High corrosion stress

Note on materials-

Material of tube retaining claw-

DesignPush-pull principle

Product weight-

Housing material-

SizeStandard

Type codeNPQH

578393
8 in stock
578393
Festo

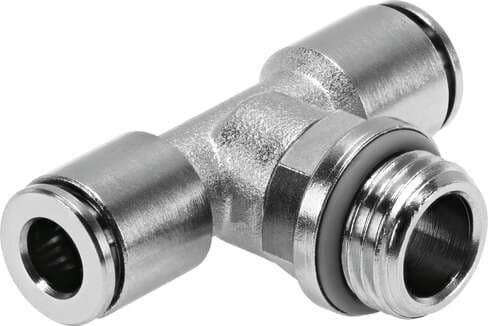

push-in T-fitting NPQH-T-G18-Q6-P10 Size: Standard, Nominal size: 5 mm, Type of seal on screw-in stu...
