573056 Festo Pneumatic Fittings

Name: 573056
Brand: Festo

Part#:573056

Alt. Part#:QBM-1/4T-U

Manufacturer:Festo

Category:Pneumatic Fittings

Product Lifecycle:Active

Only 2 left in stock. Order Now!

Apr 1, 2025

Product description

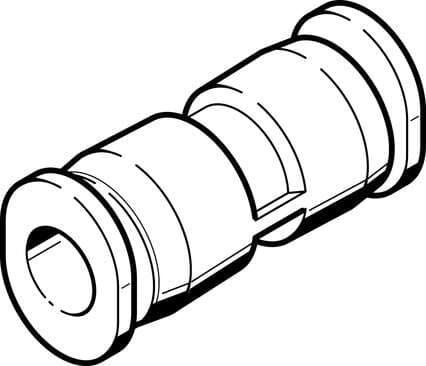

push-in connector QBM-1/4T-U Size: Mini, Nominal size: 0,197 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

Product Details

Size
Mini
Mounting position
Any
Information on operating and pilot media
Operation with oil lubrication possible
Releasing ring color
Gray
Material of tubing seal
NBR
Nominal width
5.004 mm
Type code
QBM
Corrosion resistance class (CRC)
1 - Low corrosion stress
Housing material
PBT
Design
Push-pull principle
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Ambient temperature
0 °C ... 60 °C
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Pneumatic connection 1
For pneumatic tubing outside diameter 1/4"
Releasing ring material
POM
Operating pressure for entire temperature range
-0.951 bar ... 9.997 bar
Temperature-dependent operating pressure
-0.951 bar ... 9.997 bar
Product weight
3.005 g
Pneumatic connection 2
for pneumatic tubing outer diameter 1/4"
Material of tube retaining claw
High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

573056 Related Documents

573056 DataSheet.pdf

Similar products from: Festo Pneumatic Fittings

572319

Festo

push-in fitting QB-1/8-5/16-I-U Size: Standard, Nominal size: 0,189 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

7 in stock

190651

Festo

push-in fitting QSF-1/4-12-B female thread with external hexagon. Size: Standard, Nominal size: 11 mm, Type of seal on screw-in stud: coating, Assembly position: Any, Container size: 10

8 in stock

572311

Festo

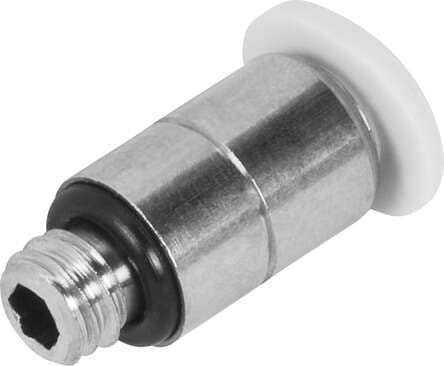

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

3 in stock

533280

Festo

push-in fitting QB-3/8-5/16-U male thread with external hexagon. Size: Standard, Nominal size: 0,252 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle

6 in stock

533285

Festo

push-in L-fitting QBML-10-32-UNF-1/8-U 360° orientable, male thread with external hexagon. Size: Standard, Nominal size: 0,098 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

4 in stock

153134

Festo

push-in T-connector QST-6-4 reducing. Size: Standard, Nominal size: 2,3 mm, Assembly position: Any, Container size: 10, Design structure: Push/pull principle

8 in stock

Manufacturer warranty

573056 Festo

Get a quick Quote!

Request a quote, and we will send you price within minutes.

Stock:

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 573056 with other Pneumatic Fittings products

Size

Mounting position

Information on operating ...

Releasing ring color

Material of tubing seal

Nominal width

Type code

Corrosion resistance clas...

Housing material

Design

Selected product

2 in stock

573056

Festo

push-in connector QBM-1/4T-U Size: Mini, Nominal size: 0,197 ", Assembly position: Any, Design struc...

SizeMini

Mounting positionAny

Information on operating and pilot mediaOperation with oil lubricati...

Releasing ring colorGray

Material of tubing sealNBR

Nominal width5.004 mm

Type codeQBM

Corrosion resistance class (CRC)1 - Low corrosion stress

Housing materialPBT

DesignPush-pull principle

20 in stock

573073

Festo

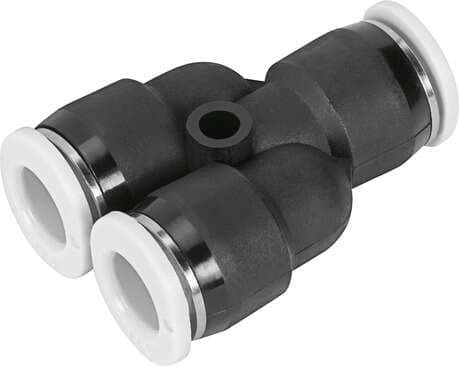

push-in Y-connector QBMY-1/4T-U Size: Mini, Nominal size: 0,197 ", Assembly position: Any, Design st...

SizeMini

Mounting positionAny

Information on operating and pilot mediaOperation with oil lubricati...

Releasing ring color-

Material of tubing seal-

Nominal width5.004 mm

Type codeQBMY

Corrosion resistance class (CRC)-

Housing material-

DesignPush-pull principle

3 in stock

572311

Festo

push-in fitting QBM-10-32-UNF-1/8-I-U Size: Mini, Nominal size: 0,094 ", Type of seal on screw-in st...

SizeMini

Mounting positionAny

Information on operating and pilot mediaOperation with oil lubricati...

Releasing ring color-

Material of tubing seal-

Nominal width2.388 mm

Type codeQBM

Corrosion resistance class (CRC)-

Housing material-

DesignPush-pull principle

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

About the Product Category

Air fittings, also referred to as pneumatic fittings or connectors, are crucial components of pneumatic systems. They ensure safe and airtight connections between various pneumatic elements like air hoses, tubes, valves, and cylinders.

Recently viewed products

ZB4BD3

Schneider Electric

Schneider Electric ZB4BD3 is a selector switch belonging to the XB4 sub-range, featuring a head with a standard handle. The bezel of this switch is chromium-plated and made of metal, presenting a round shape. It offers a high degree of protection with ratings of IP69K, NEMA 4X, and NEMA 13, ensuring its suitability for various industrial environments. The mechanical durability of this switch is rated at 1,000,000 operations at no load. It has a diameter of 22 mm and operates in a 3-position stay-put mode, with angular positions set at -45°, 0, and +45°.

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

Novanta IMS MDI3CRL17C4-EQ-N is a stepper motor that features an integrated driver and operates as a 2-phase DC stepper motor. It is designed with an external single-end 512-line optical encoder, a rear control knob, and a triple (3) motor stack, enhanced by the Plus 2 version for expanded features. This motor utilizes a 16-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage required for operation ranges from 12Vdc to 48Vdc, with an optimal performance at 24Vdc. It is mounted using a 42x42mm flange. The ambient air temperature suitable for its operation is between 0 and +85°C. This stepper motor is rated with a degree of protection of IP20, has a moment of inertia of 0.082kg.cm^2, a stall torque of 53N.cm, and offers a resolution characterized by a 1.8° step angle.

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

Novanta IMS MDI4MRQ34B2-EQ is a stepper motor within the Stepper motors sub-range, featuring an integrated driver and a 2-phase AC stepper motor design. It is equipped with an external single-end 512-line optical encoder and a double (2) motor stack, Plus 2 version for expanded features. The connection is facilitated through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. This stepper motor operates on a 240Vac supply voltage and is designed for mounting with an 85x85mm flange. It can operate in ambient air temperatures ranging from 0 to +85°C and has a degree of protection rated at IP65. The moment of inertia is specified at 1.6kg.cm2, with a stall torque of 353N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

61570882

SAB

SABIX A 157 FRNC - 16 AWG/1c, flame retardant halogen-free 1000V white hook-up wire, UL, CE, RoHS

0 in stock

CRDSNU-20-72-P-A-CS

Festo

Festo CRDSNU-20-72-P-A-CS is a pneumatic cylinder designed for mounting via accessories, featuring a high-alloy stainless steel cylinder barrel, cover, and piston rod. It operates within an ambient air temperature range of 0°C to +80°C and has a round cylindrical shape. This stainless steel double-acting single-ended round ISO pneumatic air cylinder falls under the CRDSNU series, with a design based on ISO6432. It includes built-in magnet elastic cushioning at both ends for unlubricated operation and allows for position sensing via a proximity sensor. The cylinder is double-acting, utilizing compressed air as per ISO8573-1;2010 [7;4;4] standards. It features an M8 male threaded rod and a 1/8" BSPP / G1/8" threaded pneumatic port for connections. The operating pressure range is +1 to +10bar, with a bore size of 20mm and a stroke length of 72mm.

0 in stock

ZB4BD3

Schneider Electric

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

0 in stock

MDI4MRQ34B2-EQ

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

CRDSNU-20-72-P-A-CS

Festo

0 in stock

ZB4BD3

Schneider Electric

0 in stock

MDI3CRL17C4-EQ-N

Novanta IMS

0 in stock

Relevant products

5736

Verified stock: 0

pneumatic valve CJ-5/2-1/4 Without sub-base Valve function: 5/2 bistable, Type of actuation: pneumatic, Standard nominal flow rate: 1400 l/min, Operating pressure: 1 - 16 bar, Nominal size: 6,5 mm

Festo

5734

Verified stock: 0

pneumatic valve CL-5/2-1/4 Without sub-base Valve function: 5/2 monostable, Type of actuation: pneumatic, Standard nominal flow rate: 1400 l/min, Operating pressure: 1 - 10 bar, Nominal size: 6,5 mm

Festo

573073

Verified stock: 20

push-in Y-connector QBMY-1/4T-U Size: Mini, Nominal size: 0,197 ", Assembly position: Any, Design structure: Push/pull principle, Operating pressure complete temperature range: -13,8 - 145 Psi

Festo

573066

Verified stock: 0

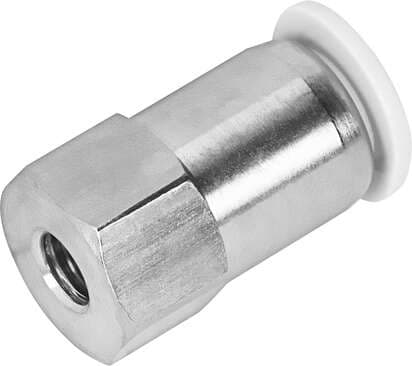

push-in fitting QBMF-10-32-UNF-1/4-U Size: Mini, Nominal size: 0,118 ", Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Design structure: Push/pull principle

Festo

573060

Verified stock: 0

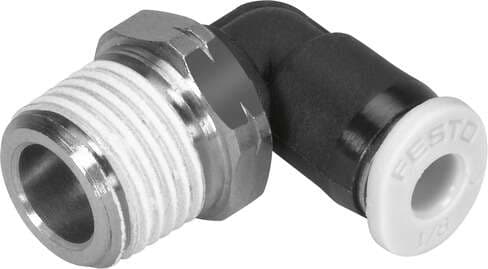

push-in L-fitting QBML-1/8-1/4-U Size: Mini, Nominal size: 0,118 ", Type of seal on screw-in stud: coating, Assembly position: Any, Design structure: Push/pull principle
