564844 Festo Stop Valves

Name: 564844
Brand: Festo

Part#:564844

Manufacturer:Festo

Alt. Part#:GRLA-3/8-QB-3/16-U

Product Lifecycle:Active

Get a quick Quote!

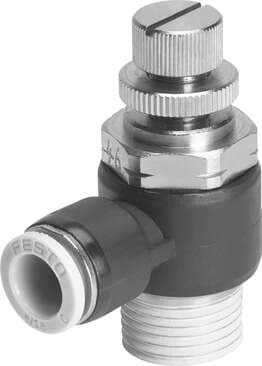

one-way flow control valve GRLA-3/8-QB-3/16-U Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QB-3/16, Pneumatic connection, port 2: 3/8 NPT, Type of actuation: manual, Adjusting element: Slotted head screw

About the manufacturer: Festo is one of the manufacturers that offers Stop Valves that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 564844 Festo price in the box on the right side or send a quick quote.

Product Details

Pneumatic connection 2
3/8 NPT
Standard nominal flow rate in non-return direction
1029.661 l/min ... 1372.881 l/min
Standard flow rate in non-return direction at 6 -> 0 bar
1741.525 l/min ... 1817.797 l/min
Max. tightening torque
21.964 Nm
Releasing ring material
POM
Type code
GRLA
Actuation type
Manual
Ambient temperature
0 °C ... 60 °C
Symbol
00991452
Product weight
65.489 g
Swivel joint material
PBT-reinforced
Pneumatic connection 1
QB-3/16
Type of mounting
Screw-in With external thread
Mounting position
Any
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Material of screwed trunnion
Brass Nickel-plated
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Material of adjusting screw
Brass Nickel-plated
Valve function
Exhaust air flow control non-return function
Adjusting element
Slotted screw

Standard flow rate in flow control direction 6 -> 0 bar

1741.5 l/min

Hollow bolt material

Brass Nickel-plated

Standard nominal flow rate in flow control direction

1347.46 l/min

Operating pressure for entire temperature range

-0.951 bar ... 7.998 bar

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Temperature of medium

0 °C ... 60 °C

Seals material

NBR

Knurled head material

Brass Nickel-plated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
