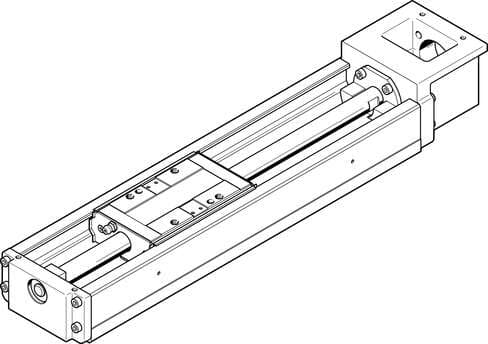

562784 Festo Electric Actuators

Product Details

• Size
  46
• Guide
  Recirculating ball bearing guide
• Repetition accuracy
  ±0.01 mm
• Max. driving torque
  0.42 Nm
• Max. force Fz
  4919 N
• Mass moment of inertia JO
  0.0847 kgcm²
• Product weight
  7710 g
• Spindle material
  Steel
• Working stroke
  200 mm
• Type code
  EGSK
• Symbol
  00991211
• Linear guide dynamic basic load rating
  21747 N
• 2nd moment of area Iz
  1500000 mm⁴
• Max. torque Mz
  48.7 Nm
• Mass moment of inertia JH per meter of stroke
  0.39 kgcm²
• Feed constant
  10 mm/U
• Basic weight with 0 mm stroke
  5170 g
• Spindle nut material
  Steel
• Reversing backlash
  ≤ 20 µm
• Mounting position
  Any
Max. acceleration
20 m/s²
Fixed bearing dynamic basic load rating
6600 N
2nd moment of area Iy
240000 mm⁴
Max. torque Mx
145 Nm
No-load driving torque
0.1 Nm
Statistical fixed bearing load rating
3240 N
Slide weight
910 g
Profile material
Coated High-alloy steel
Slide material
Steel
Screw diameter
15 mm
Homing
Reference switch
Design
Electromechanical linear axis with ball screw drive
Corrosion resistance class (CRC)
0 - No corrosion stress
Dynamic basic load rating, ball screw drive
3140 N
Max. force Fy
4919 N
Max. feed force Fx
264 N
Linear guide statistical basic load rating
45500 N
Moving mass
910 g
Additional weight per 10 mm stroke
127 g
Type of mounting
With internal thread and dowel pin
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Spindle pitch
10 mm/U
Spindle type
Ball screw drive
Max. speed
0.52 m/s
Degree of protection
IP10
Ambient temperature
0 °C ... 40 °C
Max. torque My
48.7 Nm
Ball screw drive statistical basic load rating
6760 N
Reference value, running performance
5000 km
Additional slide weight
910 g
Material of end caps
Die-cast aluminum Coated
Drive cover material
Die-cast aluminum Coated
