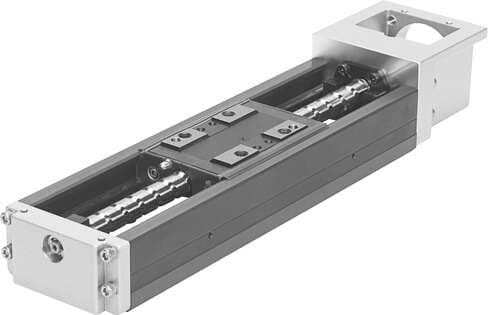

562781 Festo Electric Actuators

Product Details

• Spindle pitch
  10 mm/U
• Spindle type
  Ball screw drive
• 2nd moment of area Iy
  62000 mm⁴
• Screw diameter
  10 mm
• Homing
  Reference switch
• Max. acceleration
  20 m/s²
• Ambient temperature
  0 °C ... 40 °C
• Max. driving torque
  0.24 Nm
• No-load driving torque
  0.07 Nm
• Linear guide statistical basic load rating
  20200 N
• Mass moment of inertia JH per meter of stroke
  0.0771 kgcm²
• Additional slide weight
  310 g
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Spindle nut material
  Steel
• Size
  33
• Type code
  EGSK
• Design
  Electromechanical linear axis with ball screw drive
• Corrosion resistance class (CRC)
  0 - No corrosion stress
• Fixed bearing dynamic basic load rating
  1790 N
• Working stroke
  400 mm
Mounting position
Any
Max. speed
0.79 m/s
Linear guide dynamic basic load rating
9207 N
Max. torque My
13.8 Nm
Max. force Fy
2083 N
Ball screw drive statistical basic load rating
2840 N
Reversing backlash
≤ 20 µm
Guide
Recirculating ball bearing guide
Symbol
00991211
Repetition accuracy
±0.01 mm
Degree of protection
IP10
2nd moment of area Iz
380000 mm⁴
Max. force Fz
2083 N
Max. torque Mz
13.8 Nm
Statistical fixed bearing load rating
2590 N
Slide weight
310 g
Basic weight with 0 mm stroke
1380 g
Profile material
Coated High-alloy steel
Drive cover material
Die-cast aluminum Coated
Dynamic basic load rating, ball screw drive
1760 N
Moving mass
310 g
Additional weight per 10 mm stroke
63 g
Material of end caps
Die-cast aluminum Coated
Slide material
Steel
Max. torque Mx
42.2 Nm
Max. feed force Fx
148 N
Mass moment of inertia JO
0.0166 kgcm²
Reference value, running performance
5000 km
Type of mounting
With internal thread and dowel pin
Feed constant
10 mm/U
Product weight
3900 g
Spindle material
Steel
