555791 Festo Pneumatic Components

555791 on Powermatic Associates
Festo

Part#:555791

Alt. Part#:VABF-S2-2-L1D1-C

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

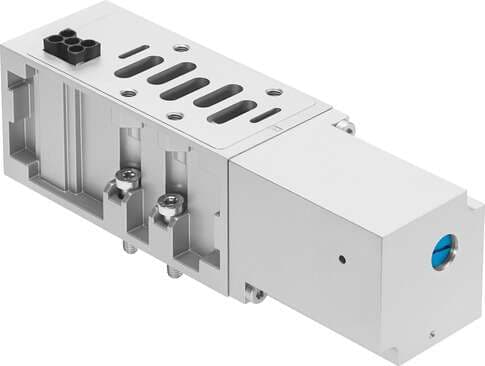

vertical pressure shut-off plate VABF-S2-2-L1D1-C Width: 54 mm, Based on the standard: ISO 5599-2, Assembly position: Any, Pneumatic vertical stacking: Shut-off for 1, Operating pressure: -0,9 - 10 bar

Product Details

  • Type code
    VABF
  • Pneumatic vertical stacking
    Shut-off for 1
  • Operating pressure
    -0.09 MPa ... 1 MPa
  • Note on materials
    RoHS-compliant
  • Width
    54 mm
  • Inlet pressure 1
    0.5 bar ... 10 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    1030 g
  • Inlet pressure 1 MPa
    0.05 MPa ... 1 MPa
  • Based on norm
    ISO 5599-2
  • Symbol
    00991890
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Housing material
    Die-cast aluminum
  • Mounting position
    Any
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    -5 °C ... 50 °C
  • Vertical stacking mounting type
    On manifold sub-base On individual sub-base
  • Inlet pressure 1 psi
    7.25 psi ... 145 psi
  • Standard nominal flow rate
    1950 l/min
  • Degree of protection
    IP65 NEMA 4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

555791 Related Documents

555791 DataSheet.pdf
