555766 Festo Pneumatic Valves Accessories

555766 on Powermatic Associates
Festo

Part#:555766

Alt. Part#:VABF-S1-2-R5C2-C-10

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

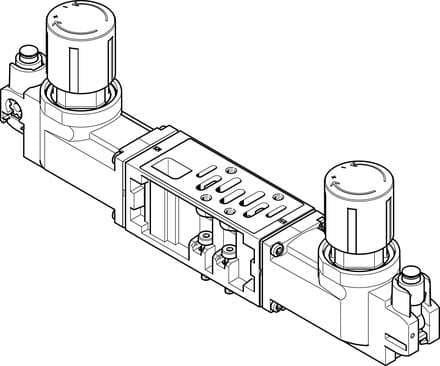

regulator plate VABF-S1-2-R5C2-C-10 Width: 54 mm, Based on the standard: ISO 5599-1, Assembly position: Any, Pneumatic vertical stacking: Pressure regulator for 2 and 4 reversible, Controller function: (* Output pressure constant, * with secondary exhaust

Product Details

  • Pressure regulation range MPa
    0.05 MPa ... 1 MPa
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Inlet pressure 1
    0.5 bar ... 10 bar
  • Ambient temperature
    -5 °C ... 50 °C
  • Material of operator panel
    PA
  • Optional pressure gauge
    Possible
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Vertical stacking mounting type
    On manifold sub-base On individual sub-base
  • Controller housing material
    Die-cast aluminum
  • Inlet pressure 1 MPa
    0.05 MPa ... 1 MPa
  • Type code
    VABF
  • Symbol
    00991939
  • Pressure regulation range
    0.5 bar ... 10 bar
  • Degree of protection
    IP65 NEMA 4
  • Note on materials
    RoHS-compliant
  • Inlet pressure 1 psi
    7.25 psi ... 145 psi
  • Width
    54 mm
  • Pneumatic vertical stacking
    Pressure regulator for 2 and 4, reversible
  • Mounting position
    Any
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    1990 g
  • Pressure regulation range psi
    7.25 psi ... 145 psi
  • Based on norm
    ISO 5599-1
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pressure gauge connection
    With retaining clamp

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

555766 Related Documents

555766 DataSheet.pdf
