552992 Festo Compressed Air Preparation Units

552992 on Powermatic Associates
Festo

Part#:552992

Alt. Part#:MS9-LFM-N3/4-BUM-HF-DA

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

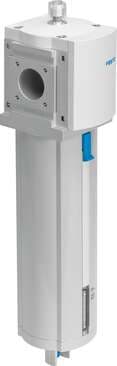

fine filter MS9-LFM-N3/4-BUM-HF-DA 1 µm filter, metal bowl guard, high flow rate, with differential pressure indicator, manual condensate drain, flow direction from left to right. Series: MS, Size: 9, Design structure: Fibre filter, Grade of filtration: 1

Product Details

  • Covering material
    PA
  • Type code
    MS9-LFM
  • Symbol
    00991543
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [6:8:4]
  • Storage temperature
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Design
    Fiber filter
  • Operating pressure
    0 bar ... 20 bar
  • Max. condensate volume
    225 ml
  • Residual oil content
    0.5 mg/m³
  • Pneumatic connection 1
    3/4 NPT
  • Compressed air filter material
    Borosilicate fiber
  • Product weight
    2500 g
  • Size
    9
  • Grade of filtration
    1 µm
  • Air quality class at the output
    Compressed air as per ISO 8573-1:2010 [5:7:3]
  • Filter efficiency
    99.99 %
  • Ambient temperature
    -10 °C ... 60 °C
  • Differential pressure display
    Visual display
  • Housing material
    Die-cast aluminum
  • Inspection window material
    PA
  • Material of bowl
    Wrought aluminum alloy
  • Series
    MS
  • Condensate drain
    Manually rotating
  • Max. standard flow rate for air quality class
    10000 l/min
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Mounting position
    Vertical +/- 5°
  • Min. standard flow rate for air quality class
    500 l/min
  • Temperature of medium
    -10 °C ... 60 °C
  • Pneumatic connection 2
    3/4 NPT
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

552992 Related Documents

552992 DataSheet.pdf
