552930 Festo Pressure Boosters

552930 on Powermatic Associates
Festo

Part#:552930

Alt. Part#:DPA-40-10-CRVZS5

Manufacturer:Festo

Category:Pressure Boosters

Product Lifecycle:Active

Product description

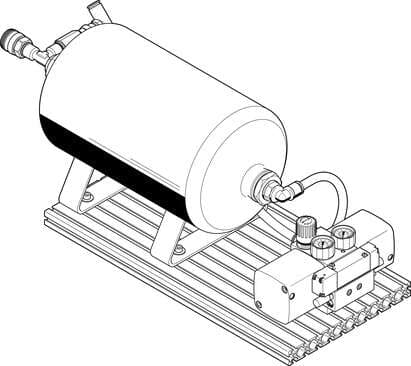

pressure booster DPA-40-10-CRVZS5 combination of pressure booster and air reservoir in stainless steel design Piston diameter: 40 mm, Volume: 5 l, Assembly position: Downward condensate drain, Design structure: (* Twin-piston pressure booster, * with air

Product Details

  • Volume
    5 l
  • Pressure gauge
    with pressure gauge
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Ambient temperature
    5 °C ... 60 °C
  • Pneumatic connection 2
    KD4
  • Design
    Twin-piston pressure intensifier with non-return valve
  • Pressure regulation range
    4.5 bar ... 10 bar
  • Storage temperature
    5 °C ... 60 °C
  • Pneumatic connection 3
    Pneumatic muffler
  • Piston diameter
    40 mm
  • Mounting position
    Condensate drain downwards
  • Outlet pressure 2
    4.5 bar ... 10 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Product weight
    7300 g
  • Type code
    DPA-CRVZS
  • Symbol
    00991432
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:3:4]
  • CE marking (see declaration of conformity)
    as per EU pressure equipment directive
  • Type of mounting
    With slot nuts
  • Pneumatic connection 1
    QS-10
  • Operating pressure
    2.5 bar ... 8 bar
  • Inlet pressure 1
    2 bar ... 8 bar
  • Max. tightening torque for condensate drain
    27 Nm
  • Note on materials
    RoHS-compliant
  • Air reservoir material
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
