552934 Festo Air Boosters

Name: 552934
Brand: Festo

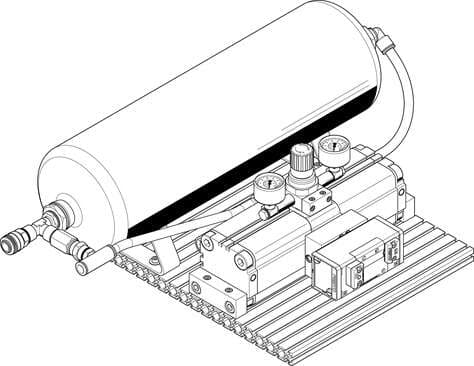

Festo 552934 pressure booster DPA-63-10-CRVZS20 combination of pressure booster and air reservoir in stainless steel design Piston diameter: 63 mm, Volume: 20 l, Assembly position: Downward condensate drain, Design structure: (* Twin-piston pressure booster, * with ai

Part#:552934

Manufacturer:Festo

Alt. Part#:DPA-63-10-CRVZS20

Product Lifecycle:Active

Get a quick Quote!

pressure booster DPA-63-10-CRVZS20 combination of pressure booster and air reservoir in stainless steel design Piston diameter: 63 mm, Volume: 20 l, Assembly position: Downward condensate drain, Design structure: (* Twin-piston pressure booster, * with ai

About the manufacturer: Festo is one of the manufacturers that offers Air Boosters that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 552934 Festo price in the box on the right side or send a quick quote.

Product Details

Type code
DPA-CRVZS
Inlet pressure 1
2 bar ... 8 bar
CE marking (see declaration of conformity)
as per EU pressure equipment directive
Product weight
21500 g
Note on materials
RoHS-compliant
Piston diameter
63 mm
Design
Twin-piston pressure intensifier with non-return valve
Operating pressure
2 bar ... 8 bar
Storage temperature
5 °C ... 60 °C
Pneumatic connection 1
QS-12
Mounting position
Condensate drain downwards
Pressure regulation range
4 bar ... 10 bar
Outlet pressure 2
4 bar ... 10 bar
Ambient temperature
5 °C ... 60 °C
Type of mounting
With slot nuts
Air reservoir material
High-alloy stainless steel
Volume
20 l
Symbol
00991432
Operating medium
Compressed air as per ISO 8573-1:2010 [7:3:4]
Information on operating and pilot media
Operation with oil lubrication not possible

Max. tightening torque for condensate drain

27 Nm

Pneumatic connection 2

KD4

Pressure gauge

with pressure gauge

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Pneumatic connection 3

Pneumatic muffler

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
