552933 Festo Air Boosters

Name: 552933
Brand: Festo

Part#:552933

Manufacturer:Festo

Alt. Part#:DPA-63-16-CRVZS10

Product Lifecycle:Active

Get a quick Quote!

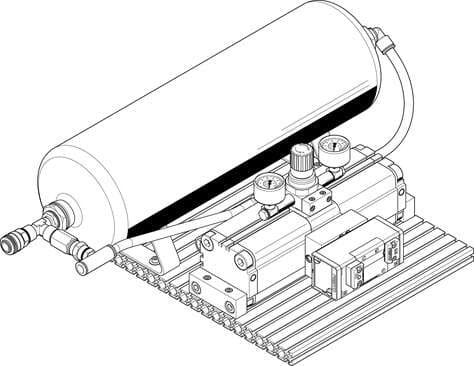

pressure booster DPA-63-16-CRVZS10 combination of pressure booster and air reservoir in stainless steel design Piston diameter: 63 mm, Volume: 10 l, Assembly position: Downward condensate drain, Design structure: (* Twin-piston pressure booster, * with ai

About the manufacturer: Festo is one of the manufacturers that offers Air Boosters that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 552933 Festo price in the box on the right side or send a quick quote.

Product Details

Type code
DPA-CRVZS
Mounting position
Condensate drain downwards
Outlet pressure 2
4 bar ... 16 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:3:4]
CE marking (see declaration of conformity)
as per EU pressure equipment directive
Pneumatic connection 1
QS-12
Note on materials
RoHS-compliant
Piston diameter
63 mm
Design
Twin-piston pressure intensifier with non-return valve
Information on operating and pilot media
Operation with oil lubrication not possible
Product weight
16000 g
Pneumatic connection 3
Pneumatic muffler
Volume
10 l
Pressure gauge
with pressure gauge
Operating pressure
2 bar ... 8 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
With slot nuts
Symbol
00991432
Inlet pressure 1
2 bar ... 8 bar
Storage temperature
5 °C ... 60 °C

Ambient temperature

5 °C ... 60 °C

Air reservoir material

High-alloy stainless steel

Pressure regulation range

4 bar ... 16 bar

Max. tightening torque for condensate drain

27 Nm

Pneumatic connection 2

KD4

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
