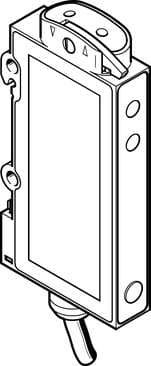

552797 Festo Pneumatic Components

Product Details

• Symbol
  00991648
• Measured variable
  Position
• Type of light
  Red
• Max. output current
  100 mA
• Conforms to standard
  EN 60947-5-2
• Note on materials
  Free of copper and PTFE
• Switching element function
  Switchable
• Timer function
  1 - 2000 ms
• Idle current
  ≤ 25 mA
• Mounting position
  Any
• Degree of protection
  IP64
• Type code
  SOE4
• CE marking (see declaration of conformity)
  As per EU EMC directive
• Measuring principle
  Optoelectronic
• Method of measurement
  Fiber-optic unit
• Ambient temperature
  -20 °C ... 60 °C
• Voltage drop
  ≤ 2.4 V
• Short-circuit protection
  Pulsed
• Cable length
  2 m
• Housing material
  ABS
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Design
Block design
Certification
RCM compliance mark c UL us - Listed (OL)
Mutual interference
Protected Up to four devices mounted directly next to each another
DC operating voltage range
10 V ... 30 V
Electrical connection
4-wire Cable
Product weight
58 g
Switching status indication
LED yellow
Setting options
Teach-in Teach-in via electrical connection
Residual ripple
10 %
Switching output
NPN
Max. switching frequency
1500 Hz
Material of cable sheath
TPE-U(PUR)
Function reserve indication
LED green
Ambient temperature with flexible cable installation
-5 °C ... 60 °C
Reverse polarity protection
for all electrical operating voltage connections
Type of mounting
With through-hole With H-rail
Display
LED
Insulation voltage
50 V
