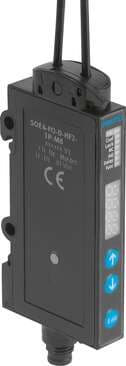

552799 Festo Pneumatic Components

Product Details

• Certification
  RCM compliance mark c UL us - Listed (OL)
• Type of light
  Red
• Max. output current
  100 mA
• DC operating voltage range
  10 V ... 30 V
• Product weight
  17 g
• Insulation voltage
  50 V
• Conforms to standard
  EN 60947-5-2
• Method of measurement
  Fiber-optic unit
• Ambient temperature
  -20 °C ... 60 °C
• Max. switching frequency
  Standard mode 1000 Hz High distance mode 125 Hz
• Timer function
  1 - 2000 ms
• Type of mounting
  With through-hole With H-rail
• Switching status indication
  LED yellow
• Type code
  SOE4
• Symbol
  00991649
• Mutual interference
  Protected Up to four devices mounted directly next to each another
• Display
  LED display
• Reverse polarity protection
  for all electrical operating voltage connections
• Setting options
  Teach-in Teach-in via electrical connection
• Design
  Block design
CE marking (see declaration of conformity)
As per EU EMC directive
Measured variable
Position
Switching element function
Switchable
Short-circuit protection
Pulsed
Idle current
≤ 25 mA
Mounting position
Any
Ready status indication
LED green
Corrosion resistance class (CRC)
4 - Particularly high corrosion stress
Measuring principle
Optoelectronic
Note on materials
Free of copper and PTFE
Switching output
PNP
Voltage drop
≤ 2.4 V
Residual ripple
10 %
Electrical connection
4-pin Plug
Housing material
ABS
Degree of protection
IP64
