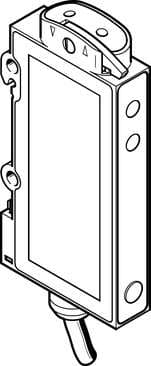

552795 Festo Pneumatic Components

Product Details

• Design
  Block design
• Note on materials
  Free of copper and PTFE
• Mutual interference
  Protected Up to four devices mounted directly next to each another
• Max. switching frequency
  1500 Hz
• Short-circuit protection
  Pulsed
• Idle current
  ≤ 25 mA
• Type of mounting
  With through-hole With H-rail
• Display
  LED
• Corrosion resistance class (CRC)
  4 - Particularly high corrosion stress
• Conforms to standard
  EN 60947-5-2
• Measured variable
  Position
• Max. output current
  100 mA
• Electrical connection
  4-wire Cable
• DC operating voltage range
  10 V ... 30 V
• Product weight
  58 g
• Ambient temperature with flexible cable installation
  -5 °C ... 60 °C
• Symbol
  00991650
• Measuring principle
  Optoelectronic
• Type of light
  Red
• Switching element function
  Switchable
Reverse polarity protection
for all electrical operating voltage connections
Mounting position
Any
Function reserve indication
LED green
Setting options
Teach-in Teach-in via electrical connection
Method of measurement
Fiber-optic unit
Switching output
PNP
Voltage drop
≤ 2.4 V
Cable length
2 m
Switching status indication
LED yellow
Degree of protection
IP64
Type code
SOE4
Certification
RCM compliance mark c UL us - Listed (OL)
CE marking (see declaration of conformity)
As per EU EMC directive
Ambient temperature
-20 °C ... 60 °C
Timer function
1 - 2000 ms
Residual ripple
10 %
Material of cable sheath
TPE-U(PUR)
Housing material
ABS
Insulation voltage
50 V
