546149 Festo Process & Media Valves
Part#:546149
Alt. Part#:VZWM-L-M22C-G34-F4
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

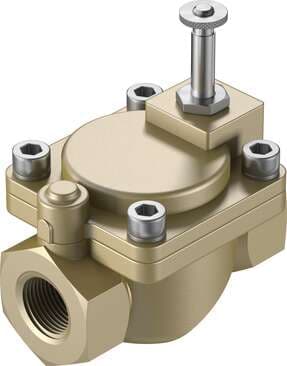

solenoid valve VZWM-L-M22C-G34-F4 Servo-controlled, with diaphragm, G3/4" connection. Design structure: (* Diaphragm valve, * Servo controlled), Type of actuation: electrical, Sealing principle: soft, Assembly position: Preferably upright, Mounting type:
Product Details
- Actuation type Electrical
- Fitting connection G3/4
- Flow direction Non-reversible
- Medium pressure of gaseous media 0.5 bar ... 10 bar
- Symbol 00995681
- Design Diaphragm valve servo-controlled
- Type of mounting Line installation
- Valve function 2/2, closed, monostable
- Medium pressure of liquid media 0.5 bar ... 6 bar
- Max. viscosity 22 mm²/s
- Flow rate Kv 8.5 m³/h
- Housing material Brass
- Product weight 1270 g
- Max. torque for cover screw 30 Nm
- Mounting position Preferably upright
- Nominal width 27.5 mm
- Response time "off" for liquid media 930 ms
- Material number of housing 2.0402
- Max. tightening torque for coil fastening 0.5 Nm
- Type code VZWM
- Differential pressure 0.5 bar
- Temperature of medium -10 °C ... 60 °C
- Standard nominal flow rate 10000 l/min
- Switching time off 12 ms
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Sealing principle Soft
- Electrical connection Solenoid coil type MD-... , coil can be ordered as an accessory
- Medium Compressed air as per ISO 8573-1:2010 [7:4:4] Neutral liquids
- Type of control Pilot-controlled
- Temperature of liquid media 5 °C ... 50 °C
- Response time "on" for liquid media 400 ms
- C value 39 l/sbar
- Seals material NBR
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Ambient temperature -10 °C ... 60 °C
- On switching time 15 ms
- b-value 0.5
- Armature tube material High-alloy steel
- CE marking (see declaration of conformity) as per EU pressure equipment directive
- Max. tightening torque for connecting thread 200 Nm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
