539726 Festo Pneumatic Components

539726 on Powermatic Associates
Festo

Part#:539726

Alt. Part#:VABS-S4-1S-N14-K2

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

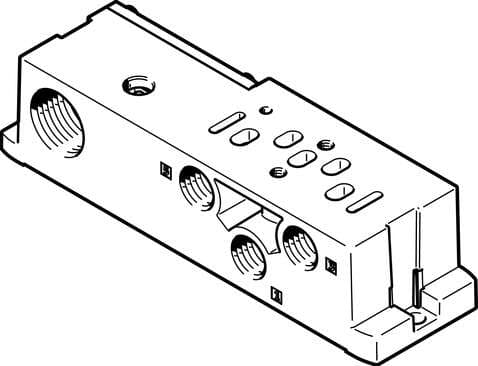

sub-base VABS-S4-1S-N14-K2 with port pattern according to standard 15407/-2. Width: 26 mm, Based on the standard: ISO 15407-2, Assembly position: Any, Pilot air supply: external, Operating pressure: -0,9 - 10 bar

Product Details

  • Type code
    VABS
  • Operating pressure
    -0.09 MPa ... 1 MPa
  • Degree of protection
    IP65 In mounted state
  • Material of sub-base
    Die-cast aluminum
  • Width
    26 mm
  • Pilot air supply port
    External
  • Current rating at 40°C
    2 A
  • Corrosion resistance class (CRC)
    0 - No corrosion stress
  • Note on materials
    RoHS-compliant
  • Mounting position
    Any
  • Contamination level
    3
  • Ambient temperature
    -5 °C ... 50 °C
  • DC operating voltage range
    24 V
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Type of mounting
    With through-hole as per ISO 15407-2
  • Based on norm
    ISO 15407-2
  • Operating voltage range AC
    110 V
  • Surge resistance
    4 kV
  • CE marking (see declaration of conformity)
    As per EU low voltage directive
  • Product weight
    302 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

539726 Related Documents

539726 DataSheet.pdf
